AMSRW-7809Z

Part No :: AMSRW-7809Z

Manufacturer: DComponents

VIGOR # :: 4168427

Description: DC DC CONVERTER 9V 4.5W

Catalog: DC DC Converters

DataSheet: AMSRW-7809Z PDF

Country of origin: -

Date code: -

AMSRW-7809Z Specifications

Type	Description
Series:	AMSRW-78Z (7.5W)
Package:	Tube
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	14V
Voltage - Input (Max):	72V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	4.5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 60°C (With Derating)
Efficiency:	92%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LCW78_09-0.5 Match 100%	TE Connectivity AMP Connectors DC-DC POL	AMSRW-7809Z vs LCW78_09-0.5
AMSRW-787.2Z Match 69%	DComponents DC DC CONVERTER 7.2V 3.6W	AMSRW-7809Z vs AMSRW-787.2Z
TSR 0.6-4890WI Match 88%	TRACO Power DC DC CONVERTER 9V 3SIP	AMSRW-7809Z vs TSR 0.6-4890WI
AMSRW-786.5Z Match 55%	DComponents DC DC CONVERTER 6.5V 3.3W	AMSRW-7809Z vs AMSRW-786.5Z
HSRP6-48S09 Match 85%	P-Duke Technology, Inc. DC DC CONVERTER 9V 5.4W	AMSRW-7809Z vs HSRP6-48S09
TSR 1-4890WI Match 56%	TRACO Power DC DC CONVERTER 9V 3SIP	AMSRW-7809Z vs TSR 1-4890WI

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 226

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.8332~~	~~$5.83~~

Current price of AMSRW-7809Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

REC3-2409DRW/H4/A

DC DC CONVERTER +/-9V 3W

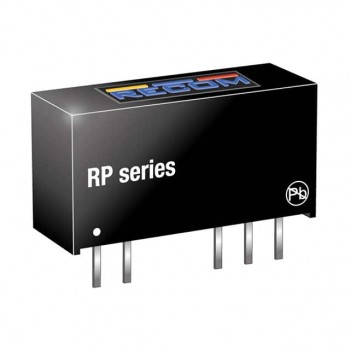

RP-0909D
