EC3SCW-24S05

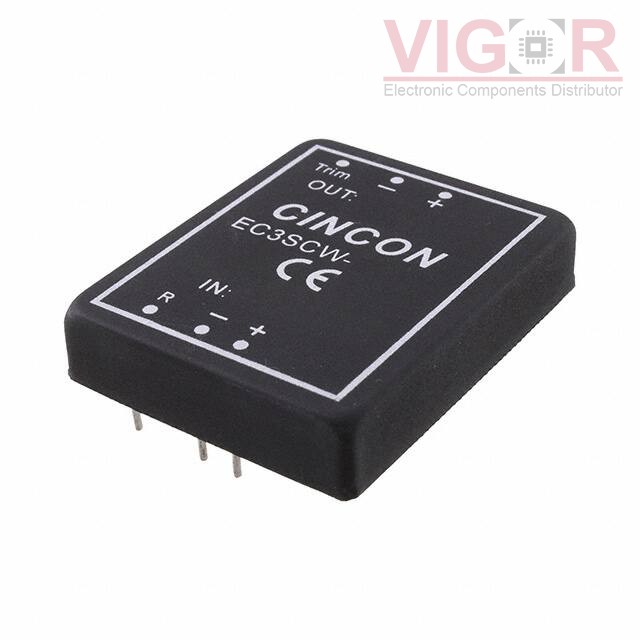

Product image
Product thumb
Part No :

EC3SCW-24S05

Manufacturer
Cincon
VIGOR # :

4169240

Description
DC DC CONVERTER 5V 30W
Catalog
DC DC Converters
DataSheet
EC3SCW-24S05 PDF
Country of origin
-
Date code
-
ads
EC3SCW-24S05 Specifications
Type Description
Series:EC3SCW (30W)
Package:Tube
Part Status:Not For New Designs
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):9V
Voltage - Input (Max):36V
Voltage - Output 1:5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):6A
Power (Watts):30 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:-40°C ~ 85°C (With Derating)
Efficiency:89%
Mounting Type:Through Hole
Package / Case:8-DIP Module, 7 Leads
Size / Dimension:2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm)
Supplier Device Package:-
Control Features:Enable, Active High
Approval Agency:-
Standard Number:-
Alternative Products
Part Number Manufacturer & Description Compare
JTA1524S05 Match 50%
XP Power
DC DC CONVERTER 5V 15W
 EC3SCW-24S05 vs JTA1524S05
EC3SCW-24S05N Match 100%
Cincon
DC DC CONVERTER 5V 30W
 EC3SCW-24S05 vs EC3SCW-24S05N
JTA2024S05 Match 71%
XP Power
DC DC CONVERTER 5V 20W
 EC3SCW-24S05 vs JTA2024S05
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 64
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $45.4700 $45.47
5 $45.1185 $225.59
10 $44.7691 $447.69
25 $44.0693 $1 101.73
50 $41.9706 $2 098.53
100 $38.4730 $3 847.31
250 $37.7736 $9 443.39

Current price of EC3SCW-24S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
EC3A02-E

EC3A02-E

DC DC CONVERTER 12V 3W

RP-0515S/P

RP-0515S/P

DC DC CONVERTER 15V 1W

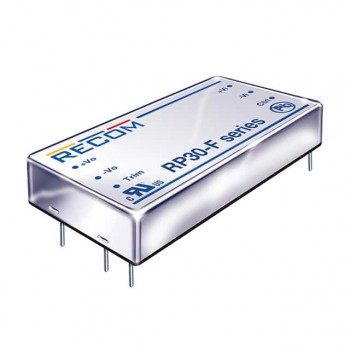

RP30-4815DF/N
