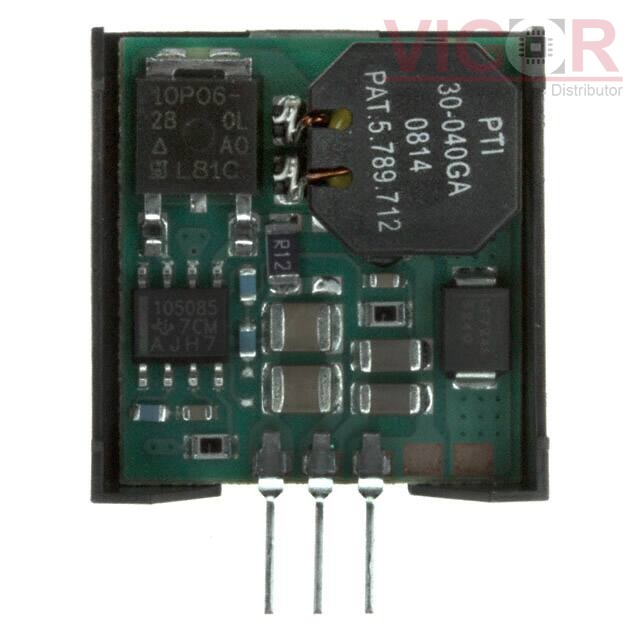

PT78ST174V

Part No :: PT78ST174V

Manufacturer: Texas Instruments

VIGOR # :: 4986359

Description: DC DC CONVERTER 7.15V

Catalog: DC DC Converters

DataSheet: PT78ST174V PDF

Country of origin: -

Date code: -

PT78ST174V Specifications

Type	Description
Series:	PT78ST100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	11V
Voltage - Input (Max):	38V
Voltage - Output 1:	7.15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT78ST106V Match 76%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT78ST174V vs PT78ST106V
LMP78_6.5-1.0R Match 61%	TE Connectivity AMP Connectors DC-DC POL	PT78ST174V vs LMP78_6.5-1.0R
PT78ST165V Match 87%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT78ST174V vs PT78ST165V
PT78ST107V Match 97%	Texas Instruments DC DC CONVERTER 7V	PT78ST174V vs PT78ST107V
PT78ST153V Match 58%	Texas Instruments DC DC CONVERTER 5.25V	PT78ST174V vs PT78ST153V
PT78ST151V Match 54%	Texas Instruments DC DC CONVERTER 5.1V	PT78ST174V vs PT78ST151V
