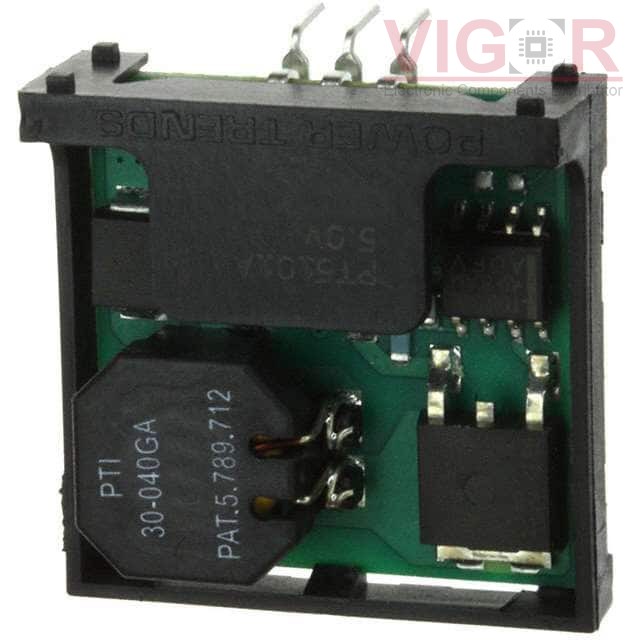

PT5105M

Part No :: PT5105M

Manufacturer: Texas Instruments

VIGOR # :: 4991535

Description: DC DC CONVERTER 6.5V 6W

Catalog: DC DC Converters

DataSheet: PT5105M PDF

Country of origin: -

Date code: -

PT5105M Specifications

Type	Description
Series:	PT5100
Package:	Tray
Part Status:	Obsolete
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	10.5V
Voltage - Input (Max):	38V
Voltage - Output 1:	6.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	6 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	1.02" L x 1.00" W x 0.38" H (25.9mm x 25.4mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT5109M Match 78%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5105M vs PT5109M
PT5105A Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5105M vs PT5105A
PT5101A Match 66%	Texas Instruments DC DC CONVERTER 5V 5W	PT5105M vs PT5101A
PT5109A Match 78%	Texas Instruments DC DC CONVERTER 5.6V 5W	PT5105M vs PT5109A
PT5101M Match 66%	Texas Instruments DC DC CONVERTER 5V 5W	PT5105M vs PT5101M
PT5101G Match 66%	Texas Instruments DC DC CONVERTER 5V 5W	PT5105M vs PT5101G
