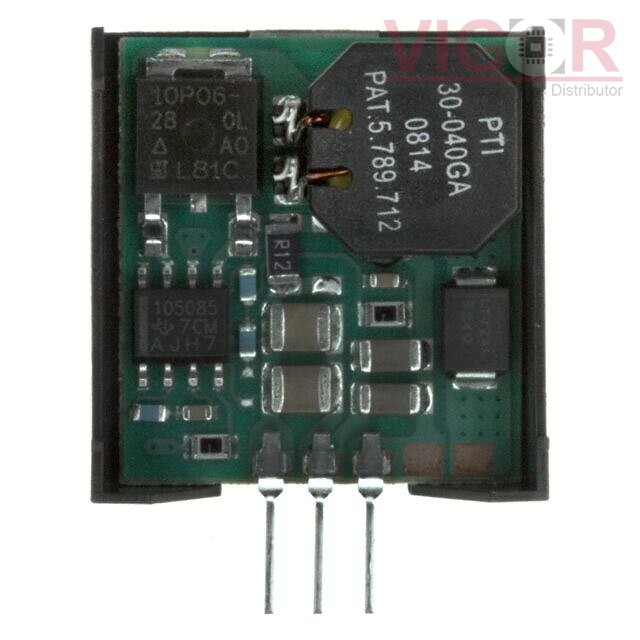

PT78ST105V

Part No :: PT78ST105V

Manufacturer: Texas Instruments

VIGOR # :: 4993250

Description: DC DC CONVERTER 5V

Catalog: DC DC Converters

DataSheet: PT78ST105V PDF

Country of origin: -

Date code: -

PT78ST105V Specifications

Type	Description
Series:	PT78ST100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	38V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R-78C5.0-1.0/X9 Match 74%	RECOM Power DC DC CONVERTER 5V 5W	PT78ST105V vs R-78C5.0-1.0/X9
LMP78_05-1.0 Match 74%	TE Connectivity AMP Connectors DC-DC POL	PT78ST105V vs LMP78_05-1.0
HSR01-48S05 Match 74%	P-Duke Technology, Inc. NON-ISOLATED/1A /VOUT:5	PT78ST105V vs HSR01-48S05
LC78_05-1.0 Match 74%	TE Connectivity AMP Connectors DC-DC POL	PT78ST105V vs LC78_05-1.0
LCW78_05-1.0 Match 74%	TE Connectivity AMP Connectors DC-DC POL	PT78ST105V vs LCW78_05-1.0
PT78ST105U Match 100%	Texas Instruments DC DC CONVERTER 5V	PT78ST105V vs PT78ST105U
