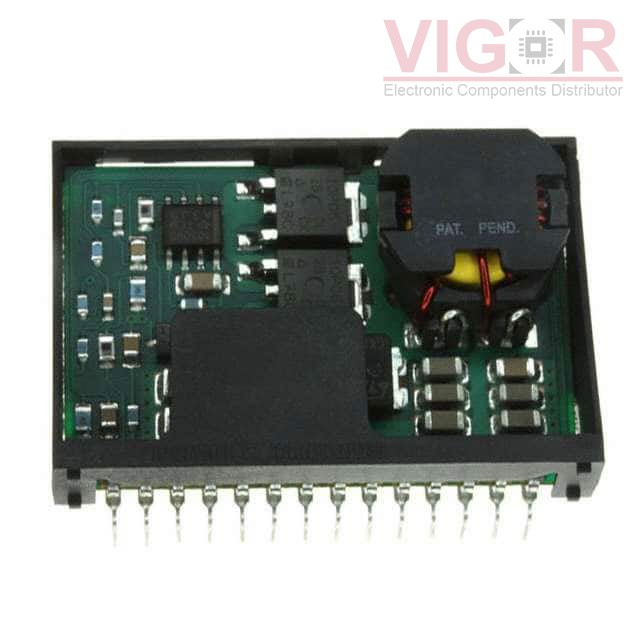

PT6656D

Part No :: PT6656D

Manufacturer: Texas Instruments

VIGOR # :: 4993735

Description: DC DC CONVERTER 12V

Catalog: DC DC Converters

DataSheet: PT6656D PDF

Country of origin: -

Date code: -

PT6656D Specifications

Type	Description
Series:	PT6650
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	15V
Voltage - Input (Max):	28V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	-
Mounting Type:	Through Hole, Right Angle
Package / Case:	14-SIP Module
Size / Dimension:	1.71" L x 1.22" W x 0.42" H (43.4mm x 31.0mm x 10.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6656G Match 86%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT6656D vs PT6656G
PT6656R Match 86%	Texas Instruments DC DC CONVERTER 12V	PT6656D vs PT6656R
PT6656Q Match 86%	Texas Instruments DC DC CONVERTER 12V	PT6656D vs PT6656Q
PT6654Q Match 61%	Texas Instruments DC DC CONVERTER 9V	PT6656D vs PT6654Q
PT6654M Match 61%	Texas Instruments DC DC CONVERTER 9V	PT6656D vs PT6654M
PT6656M Match 86%	Texas Instruments DC DC CONVERTER 12V	PT6656D vs PT6656M
