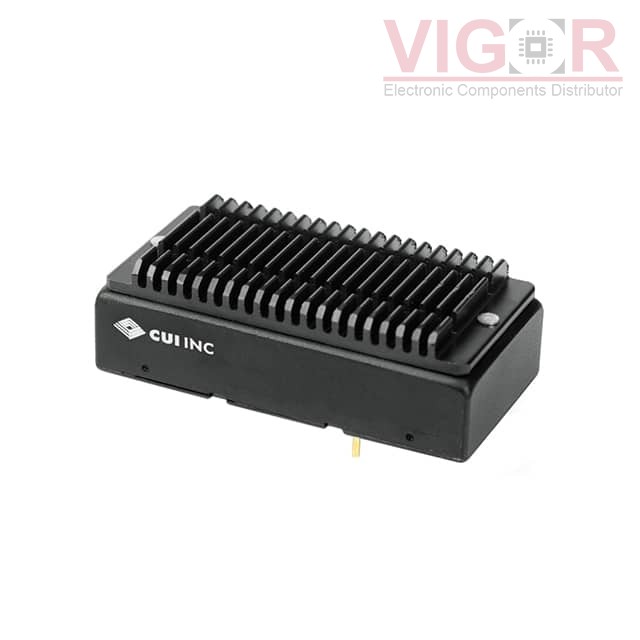

PYB15-Q48-S12-H

Part No :: PYB15-Q48-S12-H

Manufacturer: CUI Inc.

VIGOR # :: 4995511

Description: DC DC CONVERTER 12V 15W

Catalog: DC DC Converters

DataSheet: PYB15-Q48-S12-H PDF

Country of origin: -

Date code: -

PYB15-Q48-S12-H Specifications

Type	Description
Series:	PYB15 (15W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.25A
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.64" H (50.8mm x 25.4mm x 16.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SPM15-120-Q48-C Match 98%	Murata Power Solutions DC DC CONVERTER 12V 15W	PYB15-Q48-S12-H vs SPM15-120-Q48-C
EC3SBW-48S12 Match 100%	Cincon DC DC CONVERTER 12V 15W	PYB15-Q48-S12-H vs EC3SBW-48S12
15DMW_4812S1.5 Match 100%	TE Connectivity AMP Connectors DC-DC	PYB15-Q48-S12-H vs 15DMW_4812S1.5
AM15CW-4812S-NZ Match 100%	DComponents DC DC CONVERTER 12V 15W	PYB15-Q48-S12-H vs AM15CW-4812S-NZ
EC5BW-48S12A Match 100%	Cincon DC DC CONVERTER 12V 15W	PYB15-Q48-S12-H vs EC5BW-48S12A
PKE5213PI Match 100%	Flex Power Modules DC DC CONVERTER 12V 15W	PYB15-Q48-S12-H vs PKE5213PI
