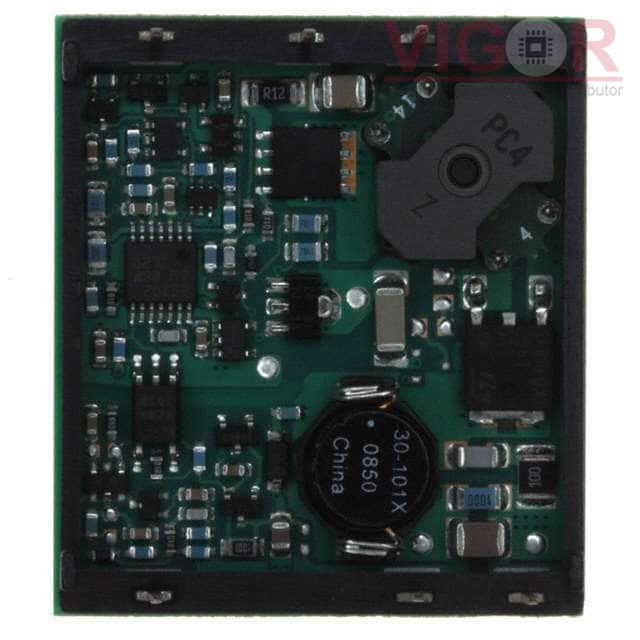

PT4125A

Part No :: PT4125A

Manufacturer: Texas Instruments

VIGOR # :: 4997110

Description: DC DC CONVERTER 5.2V 20W

Catalog: DC DC Converters

DataSheet: PT4125A PDF

Country of origin: -

Date code: -

PT4125A Specifications

Type	Description
Series:	PT4120 (20W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3.8A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EC7BW-48S05N Match 94%	Cincon DC DC CONVERTER 5V 20W	PT4125A vs EC7BW-48S05N
JTK2048S05 Match 94%	XP Power DC DC CONVERTER 5V 20W	PT4125A vs JTK2048S05
SKMW20G-05 Match 94%	MEAN WELL DC DC CONVERTER 5V 20W	PT4125A vs SKMW20G-05
PYBE20-Q48-S5 Match 94%	CUI Inc. DC DC CONVERTER 5V 20W	PT4125A vs PYBE20-Q48-S5
RP20-4805SF/N Match 94%	RECOM Power DC DC CONVERTER 5V 20W	PT4125A vs RP20-4805SF/N
EC7BW-48S05 Match 94%	Cincon DC DC CONVERTER 5V 20W	PT4125A vs EC7BW-48S05
