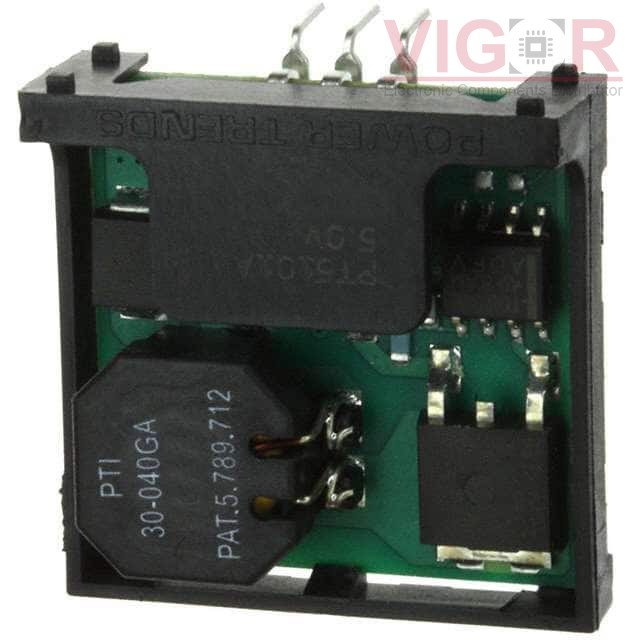

PT5111M

Part No :: PT5111M

Manufacturer: Texas Instruments

VIGOR # :: 4998465

Description: DC DC CONVERTER 10V 10W

Catalog: DC DC Converters

DataSheet: PT5111M PDF

Country of origin: -

Date code: -

PT5111M Specifications

Type	Description
Series:	PT5100
Package:	Tray
Part Status:	Obsolete
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	14V
Voltage - Input (Max):	38V
Voltage - Output 1:	10V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	10 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	92%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	1.02" L x 1.00" W x 0.38" H (25.9mm x 25.4mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
