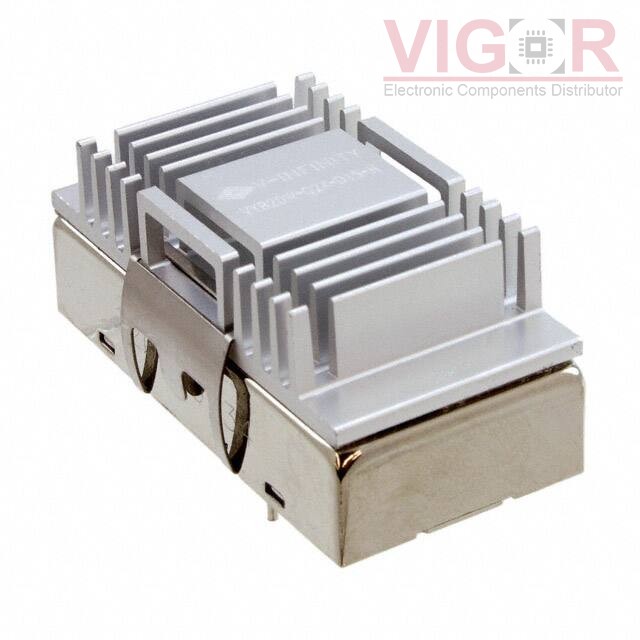

VYB20W-Q24-D15-H

Part No :: VYB20W-Q24-D15-H

Manufacturer: CUI Inc.

VIGOR # :: 4998478

Description: DC DC CONVERTER +/-15V 20W

Catalog: DC DC Converters

DataSheet: VYB20W-Q24-D15-H PDF

Country of origin: Confirming

Date code: TBC

VYB20W-Q24-D15-H Specifications

Type	Description
Series:	VYB20W (20W)
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	667mA, 667mA
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.18" W x 0.89" H (50.8mm x 30.0mm x 22.5mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-
