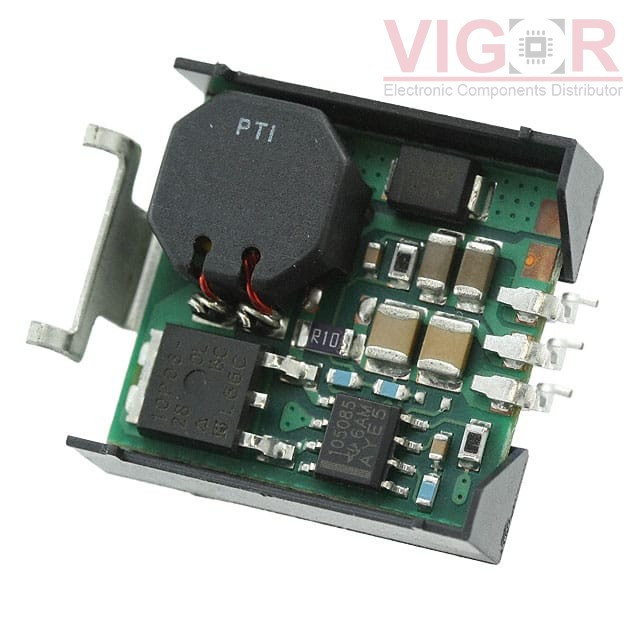

78ST109SC

Part No :: 78ST109SC

Manufacturer: Texas Instruments

VIGOR # :: 4999204

Description: DC DC CONVERTER 9V

Catalog: DC DC Converters

DataSheet: 78ST109SC PDF

Country of origin: -

Date code: -

78ST109SC Specifications

Type	Description
Series:	78ST100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	30V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	-
Mounting Type:	Surface Mount
Package / Case:	3-SMD Module
Size / Dimension:	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
78ST165SC Match 55%	Texas Instruments DC DC CONVERTER 6.5V	78ST109SC vs 78ST165SC
