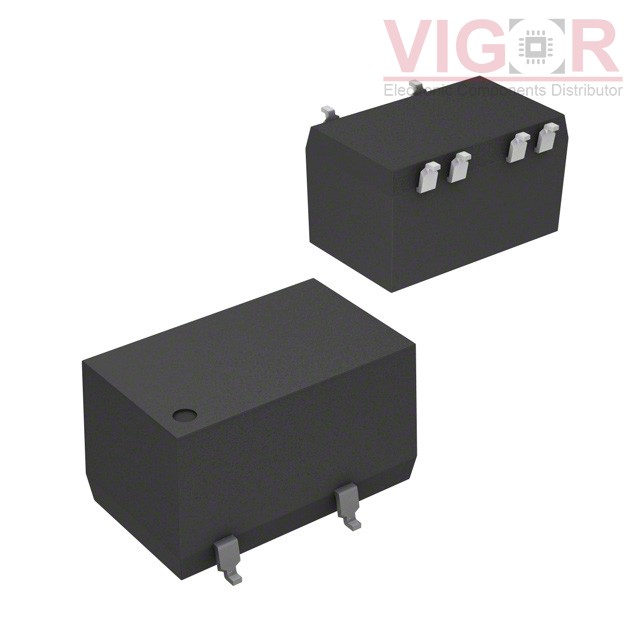

RSZ-1505/H-R

Image is for reference,
please contact us to get the real picture

Part No :: RSZ-1505/H-R

Manufacturer: RECOM Power

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Oct 27 - Oct 31 2025

DataSheet: RSZ-1505/H-R PDF

Availability: 1001 pieces

Unit Price: ~~$0.00000~~

Current price of RSZ-1505/H-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RSZ-1505/H-R Specifications

Type	Description
Series:	ECONOLINE RSZ (1W)
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	13.5V
Voltage - Input (Max):	16.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	2 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 70°C
Efficiency:	60%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.37" W x 0.35" H (15.2mm x 9.3mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
