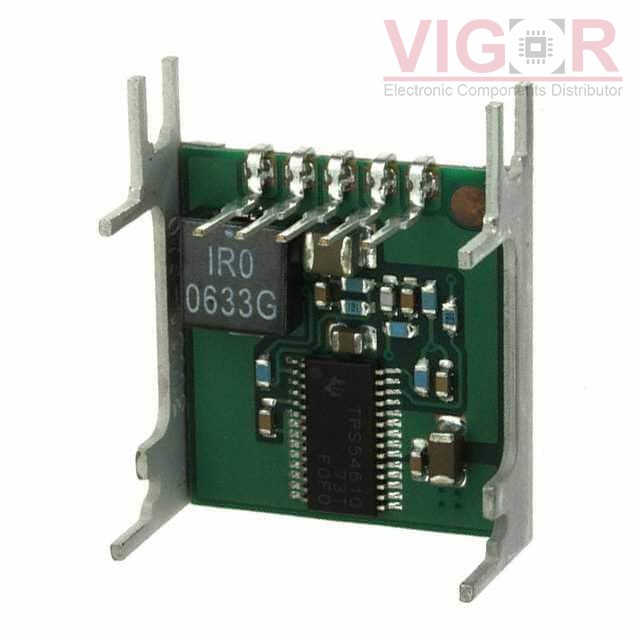

PT5402A

Part No :: PT5402A

Manufacturer: Texas Instruments

VIGOR # :: 5001280

Description: DC DC CONVERTER 2.5V

Catalog: DC DC Converters

DataSheet: PT5402A PDF

Country of origin: -

Date code: -

PT5402A Specifications

Type	Description
Series:	Excalibur™ PT5400
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	2.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	91%
Mounting Type:	Through Hole, Right Angle
Package / Case:	5-SIP Module
Size / Dimension:	1.11" L x 0.90" W x 0.31" H (28.2mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT5502A Match 56%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5402A vs PT5502A
PT5401A Match 62%	Texas Instruments DC DC CONVERTER 3.3V	PT5402A vs PT5401A
PT5403A Match 64%	Texas Instruments DC DC CONVERTER 2V	PT5402A vs PT5403A
SIL05E-05W3V3-HJ Match 74%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 0.75-3.63V 18W	PT5402A vs SIL05E-05W3V3-HJ
