PT6948A

PT6948A

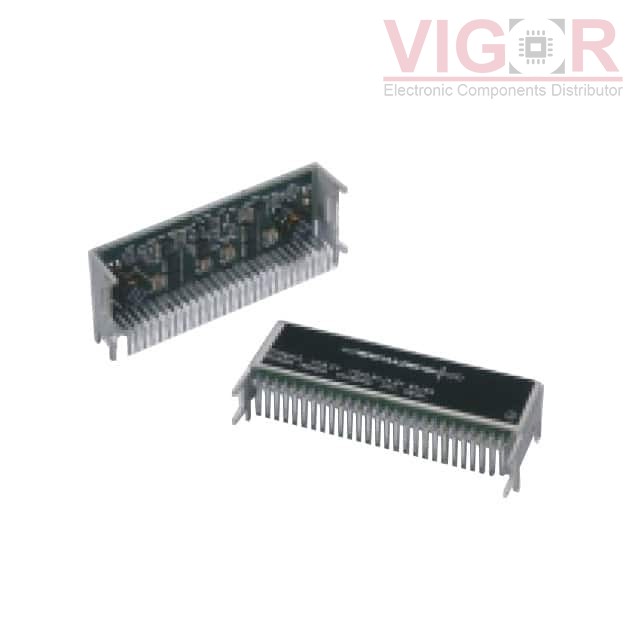

Image is for reference,
please contact us to get the real picture

Part No :

PT6948A

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 2.5V 1.2V
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 12 - Oct 16 2025
DataSheet
PT6948A PDF
Availability
1361 pieces
Unit Price
$0.00000

Current price of PT6948A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT6948A Specifications
Type Description
Series:Excalibur™ PT6940
Package:Tray
Part Status:Obsolete
Type:Non-Isolated PoL Module
Number of Outputs:2
Voltage - Input (Min):3.1V
Voltage - Input (Max):5.5V
Voltage - Output 1:2.5V
Voltage - Output 2:1.2V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):6A, 6A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C
Efficiency:87%
Mounting Type:Through Hole, Horizontal
Package / Case:27-SIP Module, Horizontal
Size / Dimension:3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
