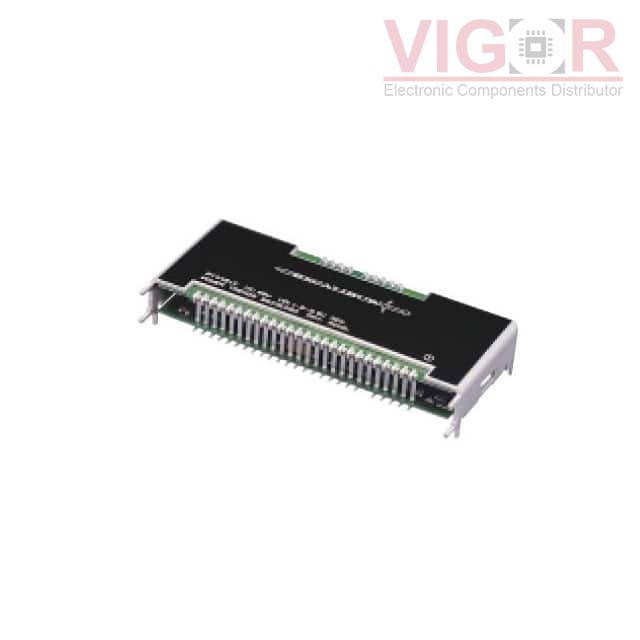

PT4476N

Part No :: PT4476N

Manufacturer: Texas Instruments

VIGOR # :: 5003356

Description: DC DC CONVERTER 6.5-17.5V 100W

Catalog: DC DC Converters

DataSheet: PT4476N PDF

Country of origin: -

Date code: -

PT4476N Specifications

Type	Description
Series:	Excalibur™ PT4476 (100W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	6.5 ~ 17.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8.5A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	26-SIP Module
Size / Dimension:	3.61" L x 0.66" W x 1.50" H (91.7mm x 16.8mm x 38.1mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-
