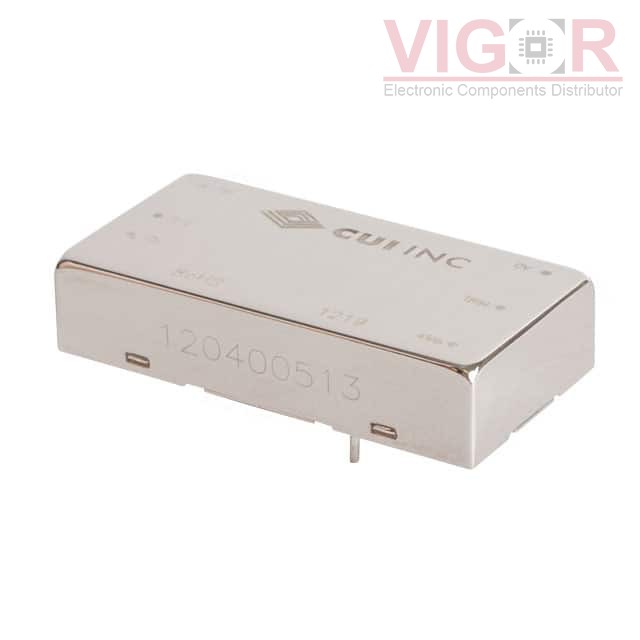

VYB20W-Q24-S15

Part No :: VYB20W-Q24-S15

Manufacturer: CUI Inc.

VIGOR # :: 5005728

Description: DC DC CONVERTER 15V 20W

Catalog: DC DC Converters

DataSheet: VYB20W-Q24-S15 PDF

Country of origin: Confirming

Date code: TBC

VYB20W-Q24-S15 Specifications

Type	Description
Series:	VYB20W (20W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.33A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PDQE20-Q24-S15-D Match 100%	CUI Inc. DC DC CONVERTER 15V 20W	VYB20W-Q24-S15 vs PDQE20-Q24-S15-D
PYB20-Q24-S15 Match 100%	CUI Inc. DC DC CONVERTER 15V 20W	VYB20W-Q24-S15 vs PYB20-Q24-S15
AXA01C18-L Match 100%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 15V 20W	VYB20W-Q24-S15 vs AXA01C18-L
LCD20-24S15W Match 99%	P-Duke Technology, Inc. DC DC CONVERTER 15V 20W	VYB20W-Q24-S15 vs LCD20-24S15W
EC7BW-24S15NS Match 100%	Cincon DC DC CONVERTER 15V 20W	VYB20W-Q24-S15 vs EC7BW-24S15NS
EC7BW-24S15S Match 100%	Cincon DC DC CONVERTER 15V 20W	VYB20W-Q24-S15 vs EC7BW-24S15S
