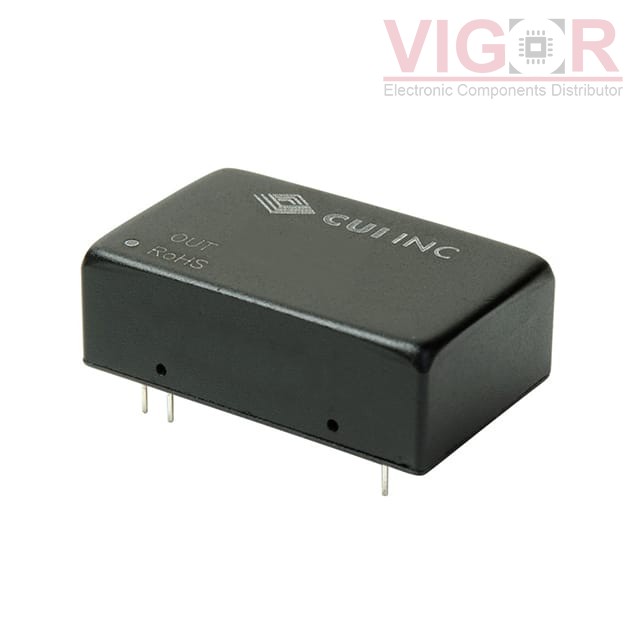

PQZ6-Q24-S12-D

Part No :: PQZ6-Q24-S12-D

Manufacturer: CUI Inc.

VIGOR # :: 5005840

Description: DC DC CONVERTER 12V 6W

Catalog: DC DC Converters

DataSheet: PQZ6-Q24-S12-D PDF

Country of origin: -

Date code: -

PQZ6-Q24-S12-D Specifications

Type	Description
Series:	PQZ6-D (6W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	6 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EC4AW-24S12H6 Match 86%	Cincon DC DC CONVERTER 12V 6W	PQZ6-Q24-S12-D vs EC4AW-24S12H6
JTF1024S12 Match 62%	XP Power DC DC CONVERTER 12V 10W	PQZ6-Q24-S12-D vs JTF1024S12
DJ06S2415A Match 71%	Delta Electronics / Power DC DC CONVERTER 15V 6W	PQZ6-Q24-S12-D vs DJ06S2415A
JTF0824S15 Match 68%	XP Power DC DC CONVERTER 15V 8W	PQZ6-Q24-S12-D vs JTF0824S15
DJ06S2412A Match 100%	Delta Electronics / Power DC DC CONVERTER 12V 6W	PQZ6-Q24-S12-D vs DJ06S2412A
JTF0824S12 Match 79%	XP Power DC DC CONVERTER 12V 8W	PQZ6-Q24-S12-D vs JTF0824S12
