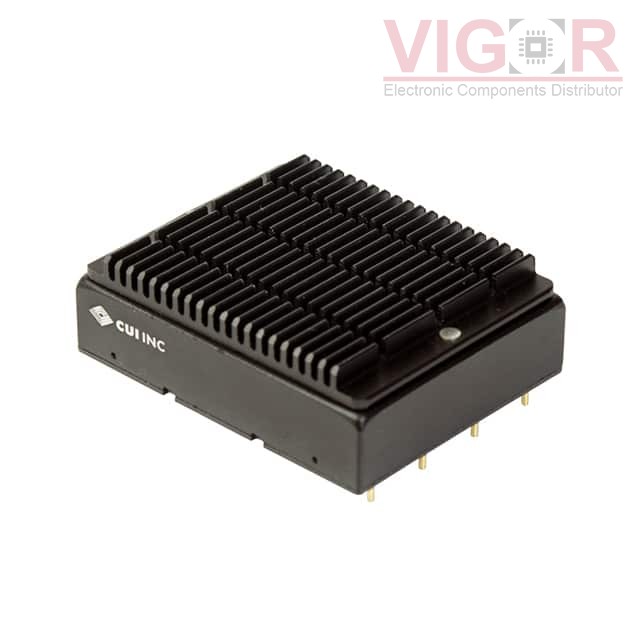

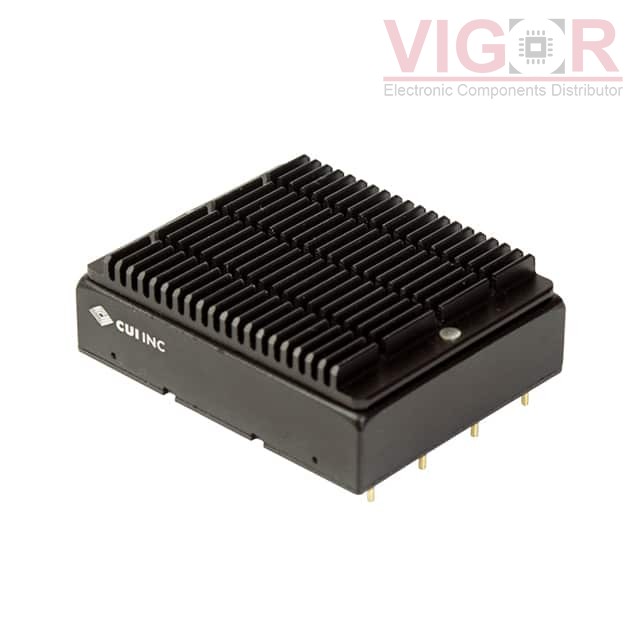

PYB30-Q24-D12-H

Part No :: PYB30-Q24-D12-H

Manufacturer: CUI Inc.

VIGOR # :: 5006918

Description: DC DC CONVERTER +/-12V 30W

Catalog: DC DC Converters

DataSheet: PYB30-Q24-D12-H PDF

Country of origin: -

Date code: -

PYB30-Q24-D12-H Specifications

Type	Description
Series:	PYB30 (30W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.25A, 1.25A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module
Size / Dimension:	2.00" L x 1.60" W x 0.64" H (50.8mm x 40.6mm x 16.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-
