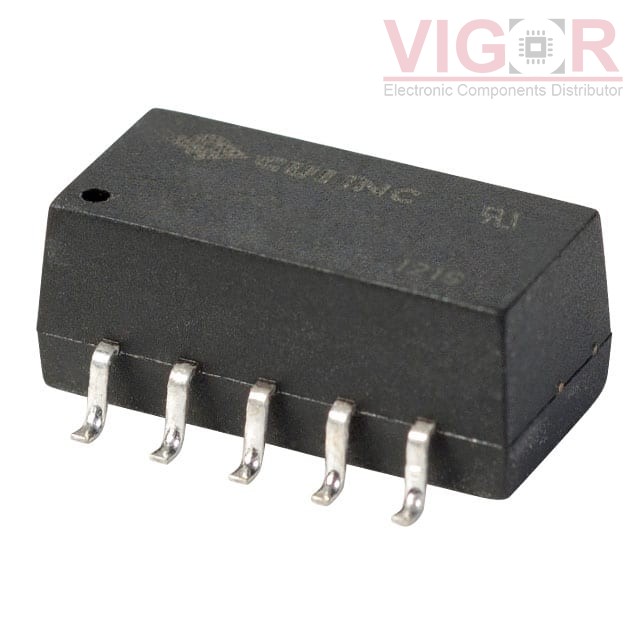

VAT1-S12-D9-SMT-TR

Image is for reference,
please contact us to get the real picture

Part No :: VAT1-S12-D9-SMT-TR

Manufacturer: CUI Inc.

Description: DC DC CONVERTER +/-9V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Oct 27 - Oct 31 2025

DataSheet: VAT1-S12-D9-SMT-TR PDF

Availability: 493 pieces

Unit Price: ~~$0.00000~~

Current price of VAT1-S12-D9-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VAT1-S12-D9-SMT-TR Specifications

Type	Description
Series:	VAT1-SMT (1W)
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	9V
Voltage - Output 2:	-9V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	56mA, 56mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	73%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	0.60" L x 0.30" W x 0.25" H (15.2mm x 7.6mm x 6.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
