NBM3814B46C15A6C04 – Vicor 2.24kW Bus Converter Module

Part No :: NBM3814B46C15A6C04

Manufacturer: Vicor

VIGOR # :: 5008642

Description: DC DC CONVERTER 14V 2.24 KW

Catalog: DC DC Converters

DataSheet: NBM3814B46C15A6C04 PDF

Country of origin: Confirming

Date code: TBC

Product Description

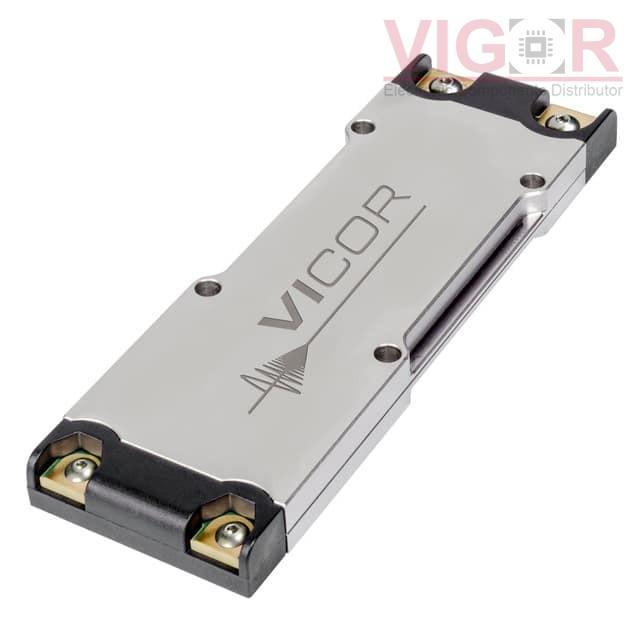

Vicor's NBM3814B46C15A6C04 is a 2.24kW bus converter module in the VI Chip® NBM family.

It converts a 36V–46V input into a regulated 14V output, delivering up to 160A of output current.

Full specifications are listed below — submit an RFQ for today's best price.

NBM3814B46C15A6C04 Specifications

Type	Description
Series:	VI Chip® NBM™
Package:	Tray
Part Status:	Obsolete
Type:	Bus Converter Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	46V
Voltage - Output 1:	14V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	160A
Power (Watts):	2.24 kW
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-20°C ~ 100°C
Efficiency:	97.6%
Mounting Type:	Through Hole
Package / Case:	Module
Size / Dimension:	3.76" L x 1.40" W x 0.37" H (95.6mm x 35.5mm x 9.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
BCM3814B60E15A3C10 Match 77%	Vicor DC DC CONVERTER 13.5V 1.755 KW	NBM3814B46C15A6C04 vs BCM3814B60E15A3C10
BCM3814B60E15A3C06 Match 77%	Vicor DC DC CONVERTER 13.5V 1.755 KW	NBM3814B46C15A6C04 vs BCM3814B60E15A3C06
BCM3814B60E15A3T06 Match 77%	Vicor DC DC CONVERTER 13.5V 1.755 KW	NBM3814B46C15A6C04 vs BCM3814B60E15A3T06
BCM3814B60E15A3T10 Match 77%	Vicor DC DC CONVERTER 13.5V 1.755 KW	NBM3814B46C15A6C04 vs BCM3814B60E15A3T10
NBM3814B46C15A6T04 Match 100%	Vicor DC DC CONVERTER 14V 2.24 KW	NBM3814B46C15A6C04 vs NBM3814B46C15A6T04
NBM3814B46C15A6C08 Match 100%	Vicor DC DC CONVERTER 14V 2.24 KW	NBM3814B46C15A6C04 vs NBM3814B46C15A6C08
