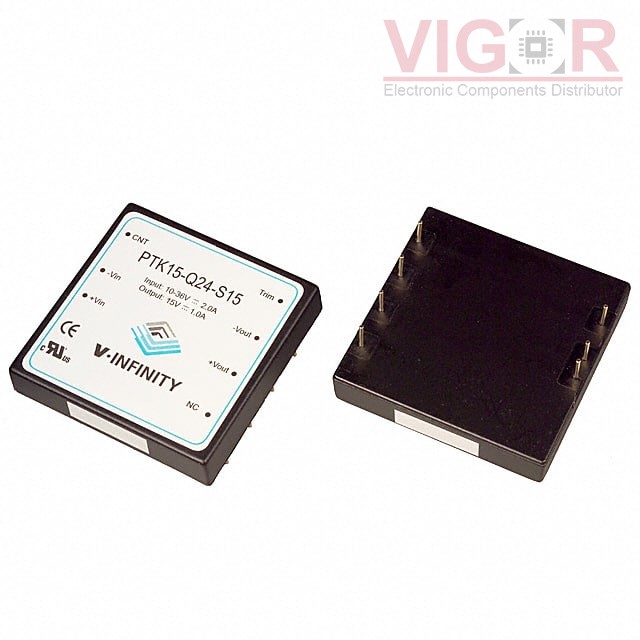

PTK15-Q24-S15

Part No :: PTK15-Q24-S15

Manufacturer: CUI Inc.

VIGOR # :: 5010086

Description: DC DC CONVERTER 15V 15W

Catalog: DC DC Converters

DataSheet: PTK15-Q24-S15 PDF

Country of origin: -

Date code: -

PTK15-Q24-S15 Specifications

Type	Description
Series:	PTK15 (15W)
Package:	Box
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	15 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-20°C ~ 71°C
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 7 Leads
Size / Dimension:	2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EC1SC03 Match 65%	Cincon DC DC CONVERTER 15V 20W	PTK15-Q24-S15 vs EC1SC03
PTK15-Q24-S12 Match 71%	CUI Inc. DC DC CONVERTER 12V 15W	PTK15-Q24-S15 vs PTK15-Q24-S12
