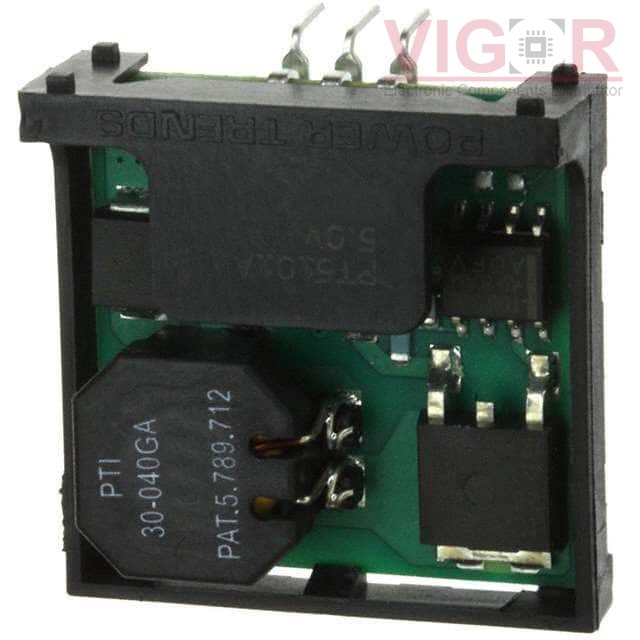

PT5102M

Part No :: PT5102M

Manufacturer: Texas Instruments

VIGOR # :: 5010533

Description: DC DC CONVERTER 12V 12W

Catalog: DC DC Converters

DataSheet: PT5102M PDF

Country of origin: -

Date code: -

PT5102M Specifications

Type	Description
Series:	PT5100
Package:	Tray
Part Status:	Obsolete
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	16V
Voltage - Input (Max):	38V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	12 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	94%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	1.02" L x 1.00" W x 0.38" H (25.9mm x 25.4mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT5102H Match 100%	Texas Instruments DC DC CONVERTER 12V 12W	PT5102M vs PT5102H
PT5111M Match 75%	Texas Instruments DC DC CONVERTER 10V 10W	PT5102M vs PT5111M
PT5102G Match 100%	Texas Instruments DC DC CONVERTER 12V 12W	PT5102M vs PT5102G
PT5110M Match 60%	Texas Instruments DC DC CONVERTER 9V 9W	PT5102M vs PT5110M
PT5111A Match 75%	Texas Instruments DC DC CONVERTER 10V 10W	PT5102M vs PT5111A
PT5102A Match 100%	Texas Instruments DC DC CONVERTER 12V 12W	PT5102M vs PT5102A
