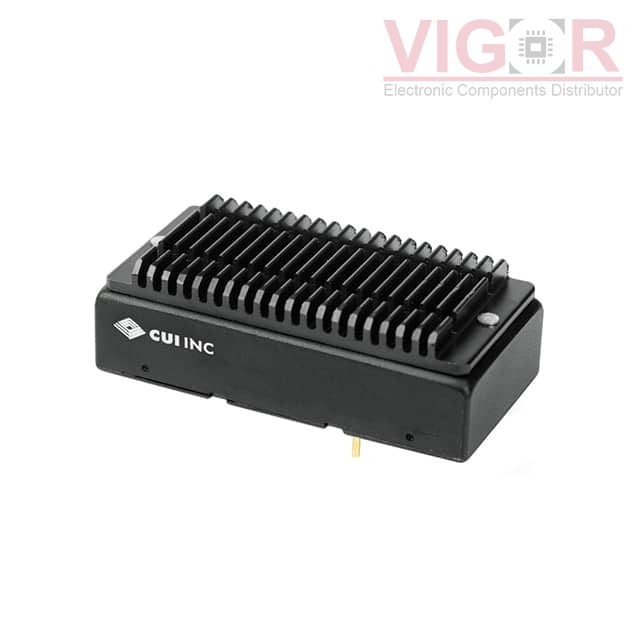

PYB15-Q24-S24-H

Part No :: PYB15-Q24-S24-H

Manufacturer: CUI Inc.

VIGOR # :: 5011417

Description: DC DC CONVERTER 24V 15W

Catalog: DC DC Converters

DataSheet: PYB15-Q24-S24-H PDF

Country of origin: Confirming

Date code: TBC

PYB15-Q24-S24-H Specifications

Type	Description
Series:	PYB15 (15W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	625mA
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.64" H (50.8mm x 25.4mm x 16.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
15DMWE4_2424S1.5 Match 100%	TE Connectivity AMP Connectors DC-DC	PYB15-Q24-S24-H vs 15DMWE4_2424S1.5
PDQE15-Q24-S24-D Match 100%	CUI Inc. DC DC CONVERTER 24V 15W	PYB15-Q24-S24-H vs PDQE15-Q24-S24-D
REC15E-2424SZ Match 96%	RECOM Power DC DC CONVERTER 24V 15W	PYB15-Q24-S24-H vs REC15E-2424SZ
THN 15-2415WIR Match 91%	TRACO Power DC DC CONVERTER 24V 15W	PYB15-Q24-S24-H vs THN 15-2415WIR
URB2424YMD-15WR3 Match 100%	Mornsun DC DC CONVERTER 24V 15W	PYB15-Q24-S24-H vs URB2424YMD-15WR3
PYB15-Q24-S24 Match 100%	CUI Inc. DC DC CONVERTER 24V 15W	PYB15-Q24-S24-H vs PYB15-Q24-S24
