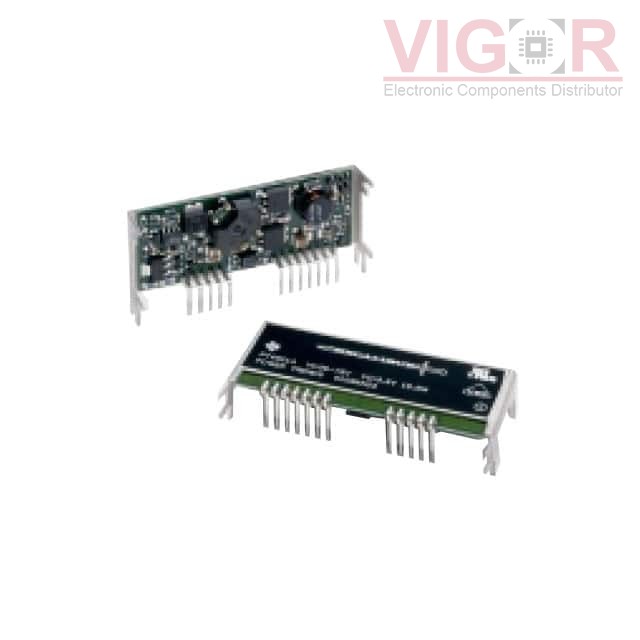

PT4526A

Part No :: PT4526A

Manufacturer: Texas Instruments

VIGOR # :: 5011650

Description: DC DC CONVERTER 1.5V 20W

Catalog: DC DC Converters

DataSheet: PT4526A PDF

Country of origin: -

Date code: -

PT4526A Specifications

Type	Description
Series:	Excalibur™ PT4520 (20W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	1.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	65%
Mounting Type:	Through Hole, Right Angle
Package / Case:	12-SIP Module
Size / Dimension:	2.58" L x 1.19" W x 0.34" H (65.5mm x 30.2mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4521A Match 64%	VIGOR DC-DC POWER SUPPLY MODULE	PT4526A vs PT4521A
PT4527A Match 84%	Texas Instruments DC DC CONVERTER 1.8V 20W	PT4526A vs PT4527A
PT4529A Match 80%	Texas Instruments DC DC CONVERTER 1.2V 20W	PT4526A vs PT4529A
PT4528A Match 64%	Texas Instruments DC DC CONVERTER 2.5V 20W	PT4526A vs PT4528A
PT4522A Match 55%	Texas Instruments DC DC CONVERTER 5V 20W	PT4526A vs PT4522A
