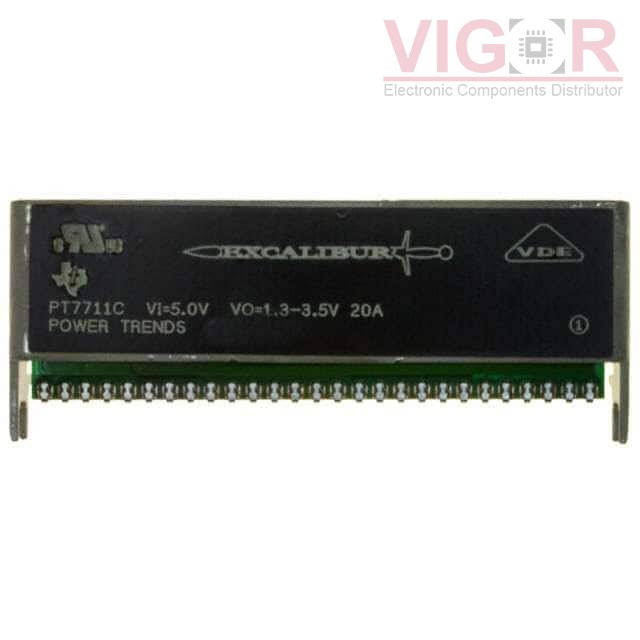

PT7711N

Part No :: PT7711N

Manufacturer: Texas Instruments

VIGOR # :: 5011959

Description: DC DC CONVERTER 1.3-3.5V

Catalog: DC DC Converters

DataSheet: PT7711N PDF

Country of origin: -

Date code: -

PT7711N Specifications

Type	Description
Series:	Excalibur™ PT7711
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.3 ~ 3.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole, Vertical
Package / Case:	27-SIP Module, Vertical
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT7709N Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7711N vs PT7709N
PT7749N Match 85%	VIGOR DC-DC BOOSTER MODULE, 1 OUTPUT	PT7711N vs PT7749N
PT7743N Match 100%	VIGOR DC-DC BOOSTER MODULE, 1 OUTPUT	PT7711N vs PT7743N
PT7715N Match 100%	Texas Instruments DC DC CONVERTER 1.075-1.85V	PT7711N vs PT7715N
