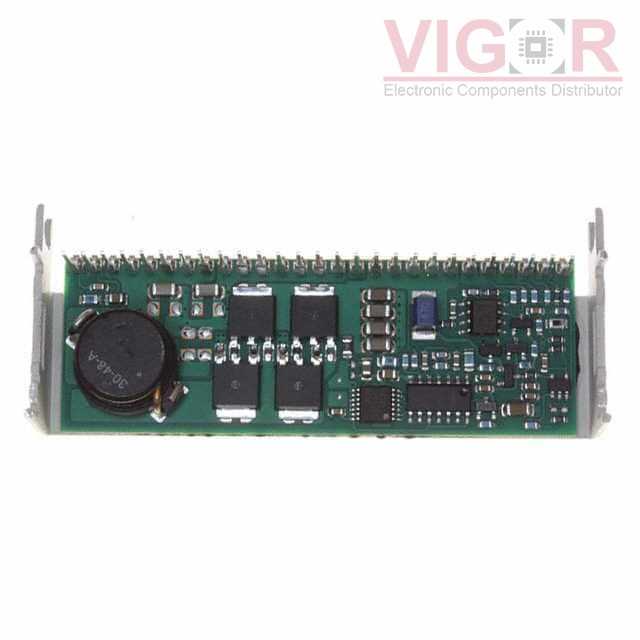

PT7716A

Part No :: PT7716A

Manufacturer: Texas Instruments

VIGOR # :: 5012950

Description: DC DC CONVERTER 1.075-1.85V

Catalog: DC DC Converters

DataSheet: PT7716A PDF

Country of origin: -

Date code: -

PT7716A Specifications

Type	Description
Series:	Excalibur™ PT7716
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	3.6V
Voltage - Output 1:	1.075 ~ 1.85V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	84%
Mounting Type:	Through Hole, Horizontal
Package / Case:	27-SIP Module, Horizontal
Size / Dimension:	3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT7712A Match 100%	VIGOR SWITCHING REGULATOR	PT7716A vs PT7712A
PT7749A Match 85%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7716A vs PT7749A
