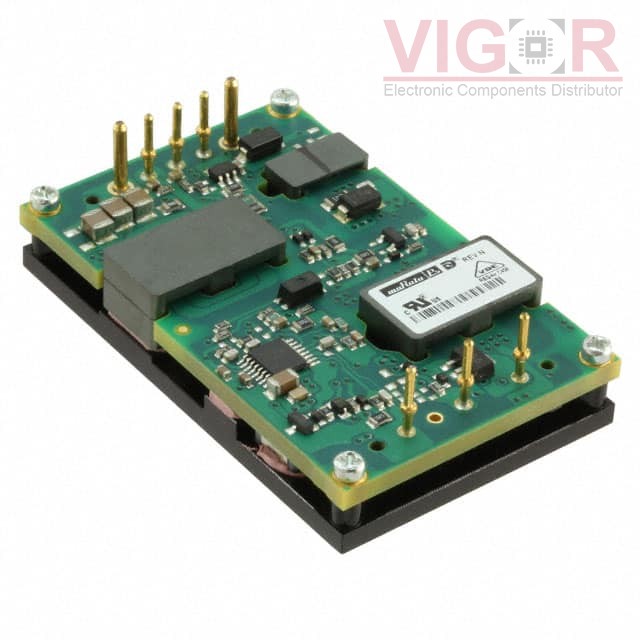

UVQ-5/20-D24NB-C

Part No :: UVQ-5/20-D24NB-C

Manufacturer: Murata Power Solutions

VIGOR # :: 5014444

Description: DC DC CONVERTER 5V 100W

Catalog: DC DC Converters

DataSheet: UVQ-5/20-D24NB-C PDF

Country of origin: Confirming

Date code: TBC

UVQ-5/20-D24NB-C Specifications

Type	Description
Series:	UVQ
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	2 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 110°C
Efficiency:	92%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 1/4 Brick
Size / Dimension:	2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
UVQ-5/20-D24PB-C Match 100%	Murata Power Solutions DC DC CONVERTER 5V 100W	UVQ-5/20-D24NB-C vs UVQ-5/20-D24PB-C
UVQ-5/20-D24P-C Match 100%	Murata Power Solutions DC DC CONVERTER 5V 100W	UVQ-5/20-D24NB-C vs UVQ-5/20-D24P-C
UVQ-5/20-D24N-C Match 100%	Murata Power Solutions DC DC CONVERTER 5V 100W	UVQ-5/20-D24NB-C vs UVQ-5/20-D24N-C
