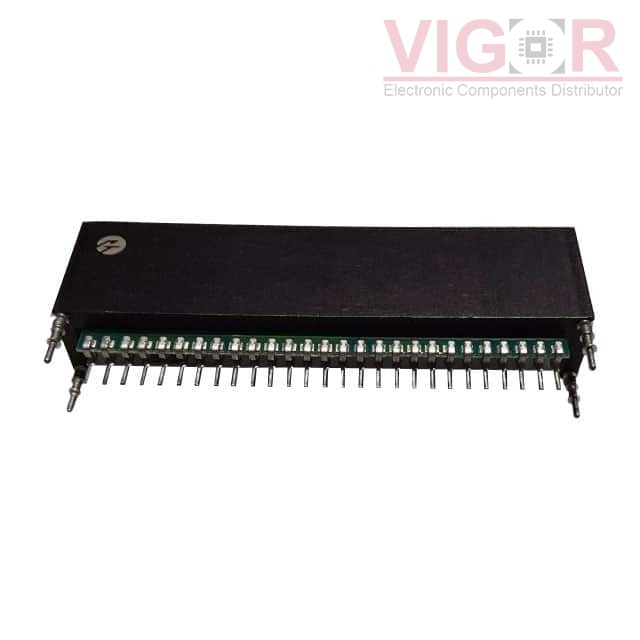

PT7709A

Part No :: PT7709A

Manufacturer: Texas Instruments

VIGOR # :: 5014589

Description: DC DC CONVERTER 1.3-3.5V

Catalog: DC DC Converters

DataSheet: PT7709A PDF

Country of origin: -

Date code: -

PT7709A Specifications

Type	Description
Series:	PT7700
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.3 ~ 3.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole, Horizontal
Package / Case:	27-SIP Module, Horizontal
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT7715A Match 100%	VIGOR SWITCHING REGULATOR	PT7709A vs PT7715A
PT7711A Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7709A vs PT7711A
PT7749A Match 85%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7709A vs PT7749A
PT7615A Match 100%	Texas Instruments DC DC CONVERTER 1.075-1.85V	PT7709A vs PT7615A
