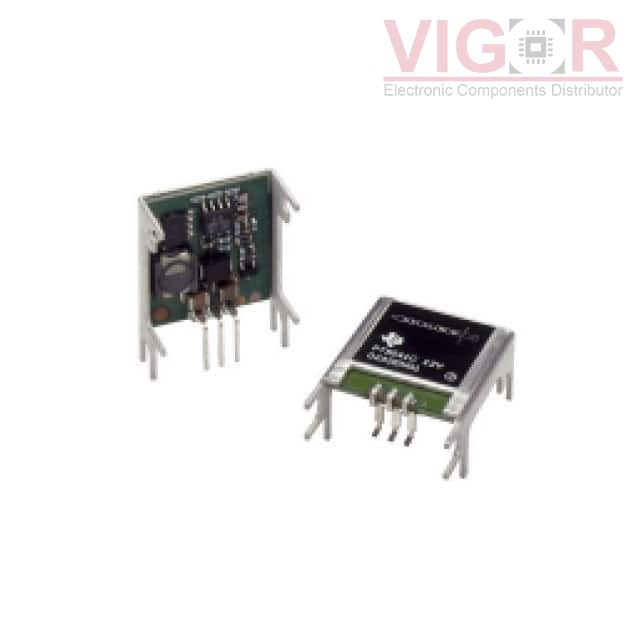

PT5546A

Part No :: PT5546A

Manufacturer: Texas Instruments

VIGOR # :: 5014784

Description: DC DC CONVERTER 10V

Catalog: DC DC Converters

DataSheet: PT5546A PDF

Country of origin: -

Date code: -

PT5546A Specifications

Type	Description
Series:	Excalibur™ PT5540 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	10V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT5541A Match 58%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5546A vs PT5541A
PT5548A Match 52%	Texas Instruments DC DC CONVERTER 12.6V	PT5546A vs PT5548A
