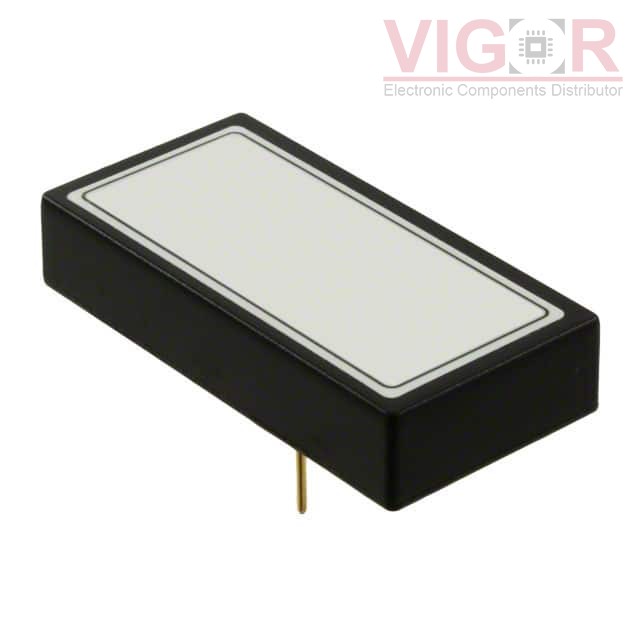

PTK10-Q48-D5

Part No :: PTK10-Q48-D5

Manufacturer: CUI Inc.

VIGOR # :: 5015206

Description: DC DC CONVERTER +/-5V 10W

Catalog: DC DC Converters

DataSheet: PTK10-Q48-D5 PDF

Country of origin: -

Date code: -

PTK10-Q48-D5 Specifications

Type	Description
Series:	PTK10 (10W)
Package:	Box
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	20V
Voltage - Input (Max):	72V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A, 1A
Power (Watts):	10 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	OCP, OVP
Operating Temperature:	-20°C ~ 71°C
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	5-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
