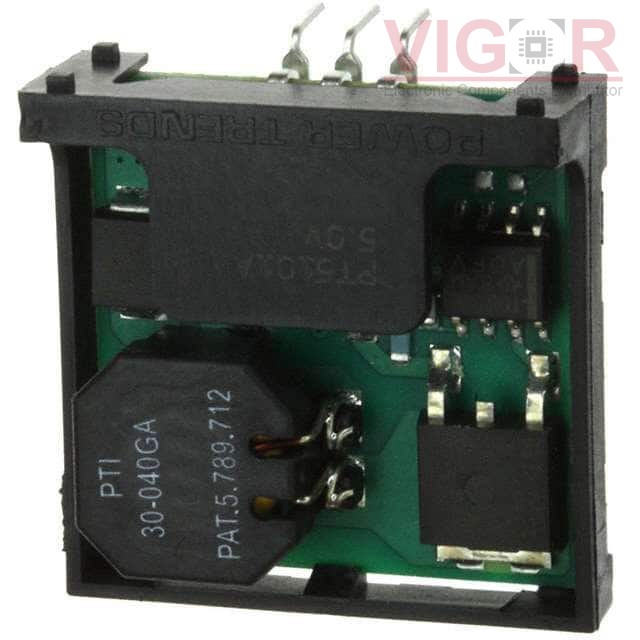

PT5101H

Part No :: PT5101H

Manufacturer: Texas Instruments

VIGOR # :: 5016304

Description: DC DC CONVERTER 5V 5W

Catalog: DC DC Converters

DataSheet: PT5101H PDF

Country of origin: -

Date code: -

PT5101H Specifications

Type	Description
Series:	PT5100
Package:	Tray
Part Status:	Obsolete
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	38V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	1.00" L x 0.38" W x 1.39" H (25.4mm x 9.7mm x 35.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R-78C5.0-1.0 Match 100%	RECOM Power DC DC CONVERTER 5V 5W	PT5101H vs R-78C5.0-1.0
SRH05S05 Match 56%	XP Power DC DC CONVERTER 5V	PT5101H vs SRH05S05
173010542 Match 100%	Würth Elektronik Midcom DC DC CONVERTER 5V	PT5101H vs 173010542
PT5101S Match 100%	Texas Instruments DC DC CONVERTER 5V 5W	PT5101H vs PT5101S
PT5101N Match 100%	Texas Instruments DC DC CONVERTER 5V 5W	PT5101H vs PT5101N
PT5101U Match 100%	Texas Instruments DC DC CONVERTER 5V 5W	PT5101H vs PT5101U
