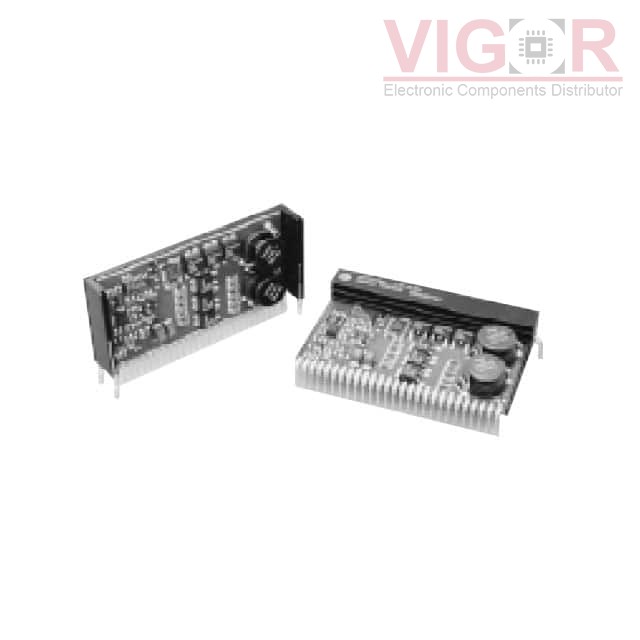

PT7774N

Part No :: PT7774N

Manufacturer: Texas Instruments

VIGOR # :: 5016384

Description: DC DC CONVERTER 0.65-2.2V

Catalog: DC DC Converters

DataSheet: PT7774N PDF

Country of origin: -

Date code: -

PT7774N Specifications

Type	Description
Series:	PT7770
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.65 ~ 2.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	32A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-
Efficiency:	-
Mounting Type:	Through Hole, Vertical
Package / Case:	27-SIP Module, Vertical
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT7775N Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7774N vs PT7775N
PT7779N1 Match 100%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7774N vs PT7779N1
PT7773N Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.1V	PT7774N vs PT7773N
PT7746N Match 100%	Texas Instruments DC DC CONVERTER 3-5.5V	PT7774N vs PT7746N
PT7771N Match 100%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7774N vs PT7771N
PT7779N Match 100%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7774N vs PT7779N
