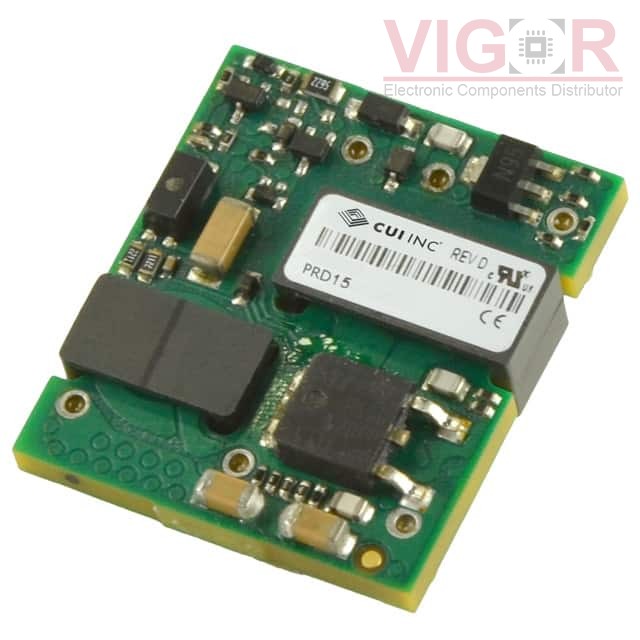

PRD15-Q24-S5-N-M-TR

Part No :: PRD15-Q24-S5-N-M-TR

Manufacturer: CUI Inc.

VIGOR # :: 5020300

Description: DC DC CONVERTER 5V 15W

Catalog: DC DC Converters

DataSheet: PRD15-Q24-S5-N-M-TR PDF

Country of origin: -

Date code: -

PRD15-Q24-S5-N-M-TR Specifications

Type	Description
Series:	PRD15 (15W)
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	15 W
Voltage - Isolation:	2 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87.3%
Mounting Type:	Surface Mount
Package / Case:	6-SMD Module
Size / Dimension:	1.10" L x 0.96" W x 0.33" H (27.9mm x 24.4mm x 8.4mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
UEI15-050-Q12NM-C Match 98%	Murata Power Solutions DC DC CONVERTER 5V 15W	PRD15-Q24-S5-N-M-TR vs UEI15-050-Q12NM-C
UEI15-050-Q12PM-C Match 98%	Murata Power Solutions DC DC CONVERTER 5V 15W	PRD15-Q24-S5-N-M-TR vs UEI15-050-Q12PM-C
RP15-2405SOFW/N-R Match 98%	RECOM Power DC DC CONVERTER 5V 15W	PRD15-Q24-S5-N-M-TR vs RP15-2405SOFW/N-R
RP15-2405SOFW/N Match 98%	RECOM Power DC DC CONVERTER 5V 15W	PRD15-Q24-S5-N-M-TR vs RP15-2405SOFW/N
RP15-2405SOFW/P Match 98%	RECOM Power DC DC CONVERTER 5V 15W	PRD15-Q24-S5-N-M-TR vs RP15-2405SOFW/P
PRD15-Q24-S5-P-M-TR Match 100%	CUI Inc. DC DC CONVERTER 5V 15W	PRD15-Q24-S5-N-M-TR vs PRD15-Q24-S5-P-M-TR
