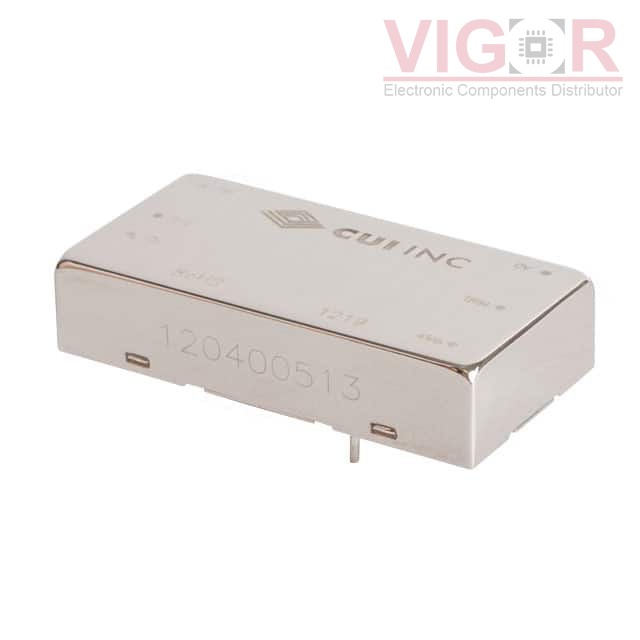

VYB20W-Q48-D5

Part No :: VYB20W-Q48-D5

Manufacturer: CUI Inc.

VIGOR # :: 5021464

Description: DC DC CONVERTER +/-5V 20W

Catalog: DC DC Converters

DataSheet: VYB20W-Q48-D5 PDF

Country of origin: -

Date code: -

VYB20W-Q48-D5 Specifications

Type	Description
Series:	VYB20W (20W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A, 2A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-
