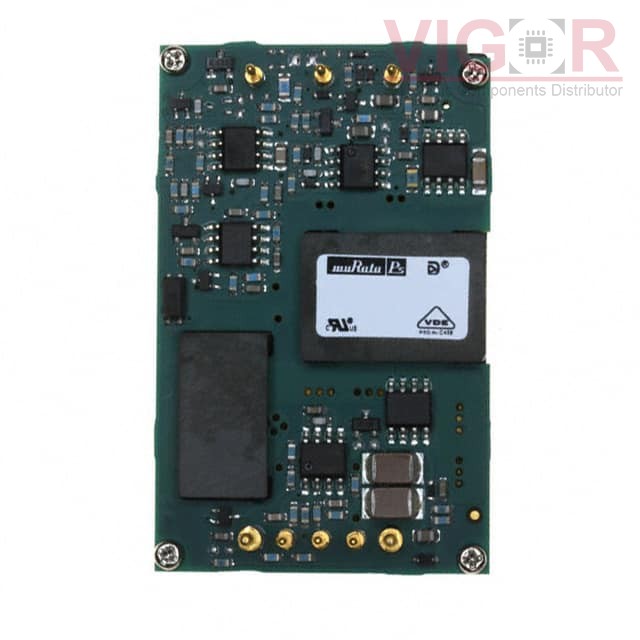

UCQ-5/20-D24PB-C

Part No :: UCQ-5/20-D24PB-C

Manufacturer: Murata Power Solutions

VIGOR # :: 5024125

Description: DC DC CONVERTER 5V 100W

Catalog: DC DC Converters

DataSheet: UCQ-5/20-D24PB-C PDF

Country of origin: -

Date code: -

UCQ-5/20-D24PB-C Specifications

Type	Description
Series:	UCQ
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OTP, OVP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	91.5%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 1/4 Brick
Size / Dimension:	2.30" L x 1.45" W x 0.40" H (58.4mm x 36.8mm x 10.0mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CN100A24-5 Match 96%	TDK-Lambda, Inc. DC DC CONVERTER 5V 100W	UCQ-5/20-D24PB-C vs CN100A24-5
UQQ-5/20-Q48NB-C Match 100%	Murata Power Solutions DC DC CONVERTER 5V 100W	UCQ-5/20-D24PB-C vs UQQ-5/20-Q48NB-C
CN100A245/CO2 Match 96%	TDK-Lambda, Inc. DC DC CONVERTER 5V 100W	UCQ-5/20-D24PB-C vs CN100A245/CO2
0RQB-C0U050G Match 98%	Power-One (Bel Power Solutions) DC DC CONVERTER 5V 100W	UCQ-5/20-D24PB-C vs 0RQB-C0U050G
AVQ100-24S05B-4L Match 95%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 5V 100W	UCQ-5/20-D24PB-C vs AVQ100-24S05B-4L
0RQB-C0U05LG Match 98%	Power-One (Bel Power Solutions) DC DC CONVERTER 5V 100W	UCQ-5/20-D24PB-C vs 0RQB-C0U05LG

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 197

Shipped from

HK warehouse

Expected Shipping Date

Sep 09 - Sep 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of UCQ-5/20-D24PB-C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
