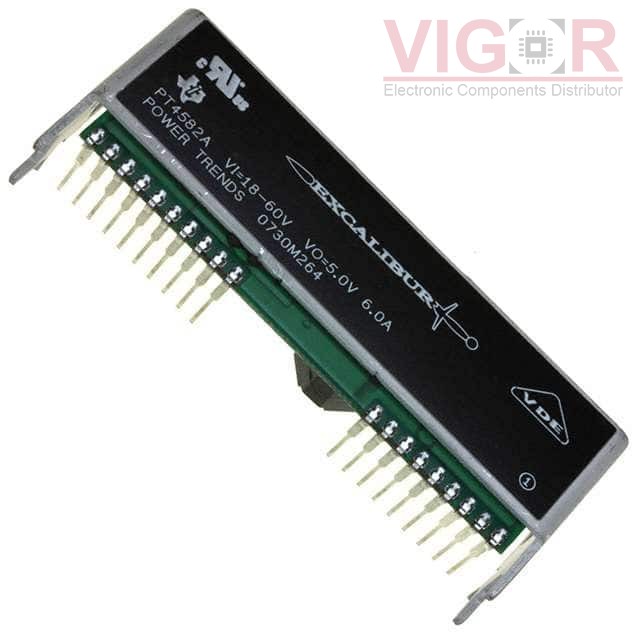

PT4585N

Part No :: PT4585N

Manufacturer: Texas Instruments

VIGOR # :: 5024147

Description: DC DC CONVERTER 1.8V 30W

Catalog: DC DC Converters

DataSheet: PT4585N PDF

Country of origin: -

Date code: -

PT4585N Specifications

Type	Description
Series:	Excalibur™ PT4580 (30W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	60V
Voltage - Output 1:	1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	70%
Mounting Type:	Through Hole
Package / Case:	19-SIP Module
Size / Dimension:	3.00" L x 0.67" W x 1.02" H (76.2mm x 17.0mm x 25.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4581N Match 64%	VIGOR DC-DC POWER SUPPLY MODULE	PT4585N vs PT4581N
PT3342N Match 52%	VIGOR DC-DC POWER SUPPLY MODULE	PT4585N vs PT3342N
PT3341N Match 64%	Texas Instruments DC DC CONVERTER 3.3V 30W	PT4585N vs PT3341N
PT4582N Match 52%	Texas Instruments DC DC CONVERTER 5V 30W	PT4585N vs PT4582N
