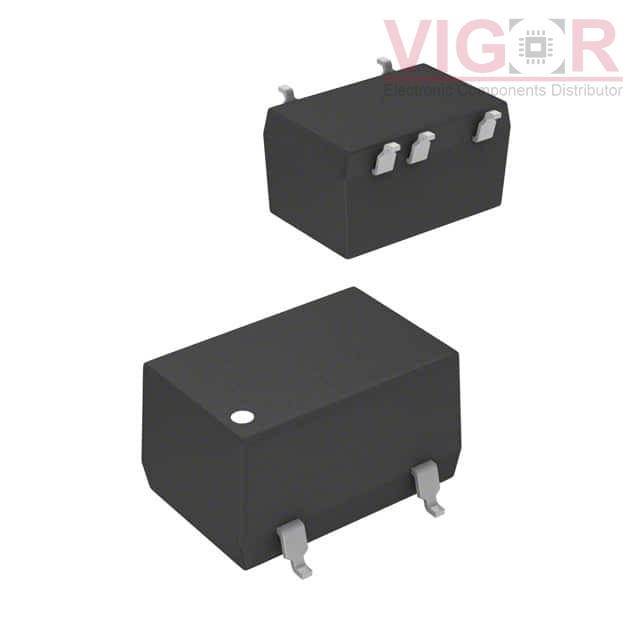

RSS-0509/H-R

Part No :: RSS-0509/H-R

Manufacturer: RECOM Power

VIGOR # :: 5024397

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

DataSheet: RSS-0509/H-R PDF

Country of origin: -

Date code: -

RSS-0509/H-R Specifications

Type	Description
Series:	ECONOLINE RSS (1W)
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial), Medical
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	78%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 5 Leads
Size / Dimension:	0.50" L x 0.32" W x 0.29" H (12.8mm x 8.2mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
1T8CE_0509S1.5UP Match 91%	TE Connectivity AMP Connectors DC-DC	RSS-0509/H-R vs 1T8CE_0509S1.5UP
RSS-0509/H Match 100%	RECOM Power DC DC CONVERTER 9V 1W	RSS-0509/H-R vs RSS-0509/H
ISE0509A-H Match 100%	XP Power DC DC CONVERTER 9V 1W	RSS-0509/H-R vs ISE0509A-H
F0509XT-1WR3-TR Match 100%	Mornsun DC DC CONVERTER 1W 9V DIP SMD	RSS-0509/H-R vs F0509XT-1WR3-TR
PES1-S5-S9-M Match 100%	CUI Inc. DC DC CONVERTER 9V 1W	RSS-0509/H-R vs PES1-S5-S9-M
IES0105S09-TR Match 91%	XP Power DC DC CONVERTER 9V 8DIP SMD	RSS-0509/H-R vs IES0105S09-TR
