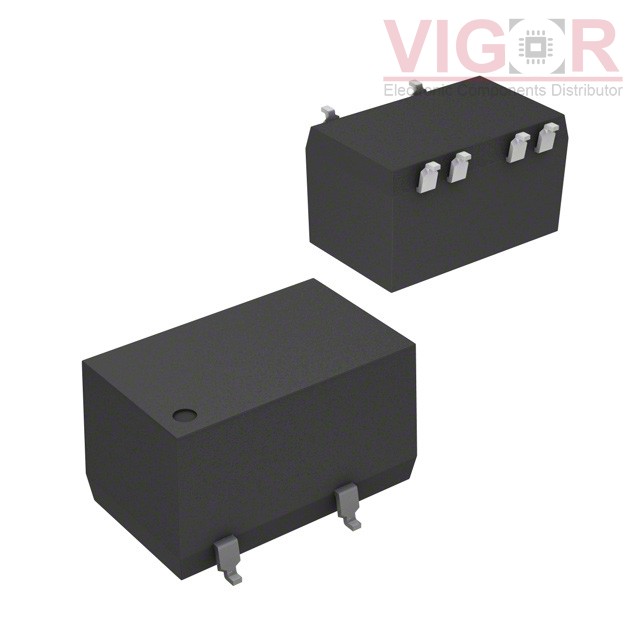

RSZ-0505

Part No :: RSZ-0505

Manufacturer: RECOM Power

VIGOR # :: 5025206

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: RSZ-0505 PDF

Country of origin: -

Date code: -

RSZ-0505 Specifications

Type	Description
Series:	ECONOLINE RSZ (1W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 70°C
Efficiency:	60%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.37" W x 0.35" H (15.2mm x 9.3mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R2SX-0505-R Match 50%	RECOM Power DC DC CONVERTER 5V 2W	RSZ-0505 vs R2SX-0505-R
RSZ-0505/P-R Match 100%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505 vs RSZ-0505/P-R
RSZ-0505-R Match 100%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505 vs RSZ-0505-R
RSZ-0505/P Match 100%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505 vs RSZ-0505/P
RSZ-0505/HP-R Match 91%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505 vs RSZ-0505/HP-R
RSZ-0505/HP Match 91%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505 vs RSZ-0505/HP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1414

Shipped from

HK warehouse

Expected Shipping Date

Jul 29 - Aug 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of RSZ-0505 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
