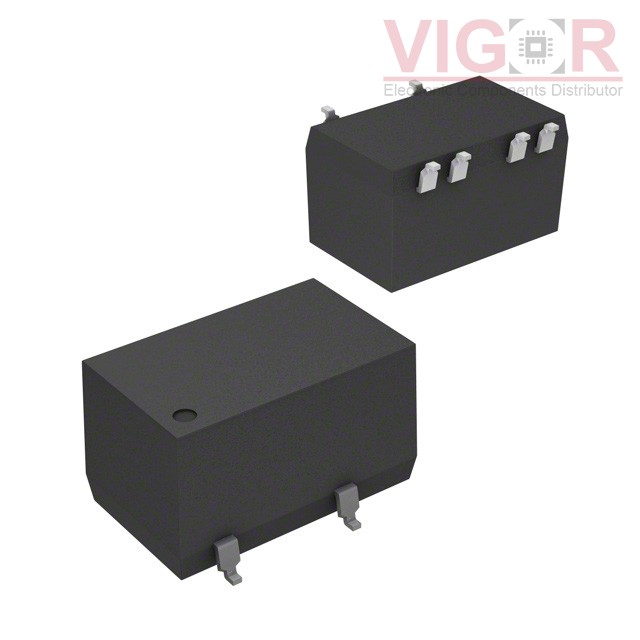

RSZ-0505/P-R

Part No :: RSZ-0505/P-R

Manufacturer: RECOM Power

VIGOR # :: 4992909

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: RSZ-0505/P-R PDF

Country of origin: -

Date code: -

RSZ-0505/P-R Specifications

Type	Description
Series:	ECONOLINE RSZ (1W)
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 70°C
Efficiency:	60%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.37" W x 0.35" H (15.2mm x 9.3mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R2SX-0505-R Match 50%	RECOM Power DC DC CONVERTER 5V 2W	RSZ-0505/P-R vs R2SX-0505-R
RSZ-0505/H-R Match 91%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505/P-R vs RSZ-0505/H-R
RSZ-0505/H Match 91%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505/P-R vs RSZ-0505/H
RSZ-0505-R Match 100%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505/P-R vs RSZ-0505-R
RSZ-0505/P Match 100%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505/P-R vs RSZ-0505/P
RSZ-0505 Match 100%	RECOM Power DC DC CONVERTER 5V 1W	RSZ-0505/P-R vs RSZ-0505
