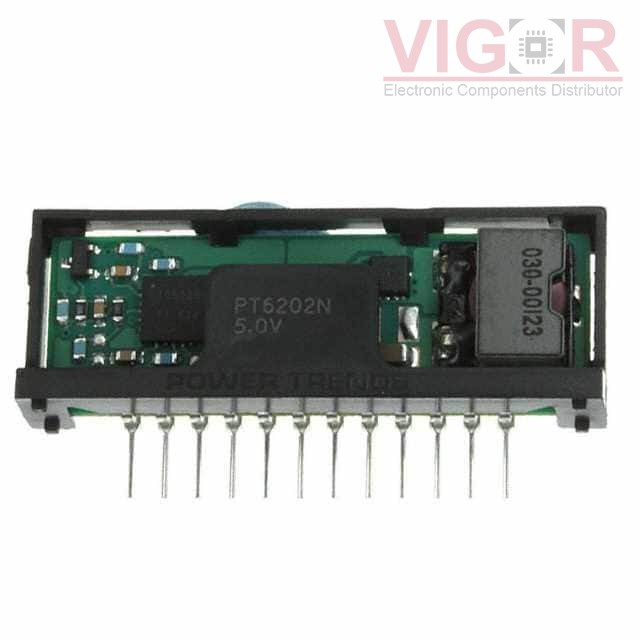

PT6202N

Part No :: PT6202N

Manufacturer: Texas Instruments

VIGOR # :: 5025459

Description: DC DC CONVERTER 5V

Catalog: DC DC Converters

DataSheet: PT6202N PDF

Country of origin: -

Date code: -

PT6202N Specifications

Type	Description
Series:	PT6200
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7.25V
Voltage - Input (Max):	30V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 60°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6202R Match 100%	VIGOR 5V 2A WIDE-INPUT ISR, VER	PT6202N vs PT6202R
PT6222N Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT6202N vs PT6222N
PT6322N Match 74%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT6202N vs PT6322N
PT6202H Match 100%	Texas Instruments DC DC CONVERTER 5V	PT6202N vs PT6202H
PT6206N Match 100%	Texas Instruments DC DC CONVERTER 5V	PT6202N vs PT6206N
PT6222R Match 100%	Texas Instruments DC DC CONVERTER 5V	PT6202N vs PT6222R
