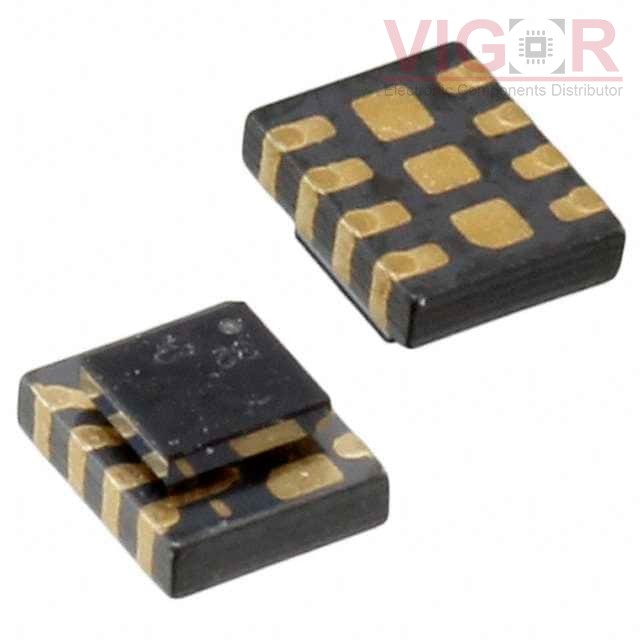

LMZ10500SHX/NOPB

Part No :: LMZ10500SHX/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 5026218

Description: DC DC CONVERTER 0.6-3.6V

Catalog: DC DC Converters

DataSheet: LMZ10500SHX/NOPB PDF

Country of origin: -

Date code: -

LMZ10500SHX/NOPB Specifications

Type	Description
Series:	SIMPLE SWITCHER®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	2.7V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.6 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	650mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	95%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module
Size / Dimension:	0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LMZ10500SEX/NOPB Match 100%	VIGOR SWITCHING REGULATOR	LMZ10500SHX/NOPB vs LMZ10500SEX/NOPB
LMZ10500SE/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.6-3.6V	LMZ10500SHX/NOPB vs LMZ10500SE/NOPB
LMZ10500SEE/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.6-3.6V	LMZ10500SHX/NOPB vs LMZ10500SEE/NOPB
LMZ10500SH/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.6-3.6V	LMZ10500SHX/NOPB vs LMZ10500SH/NOPB
