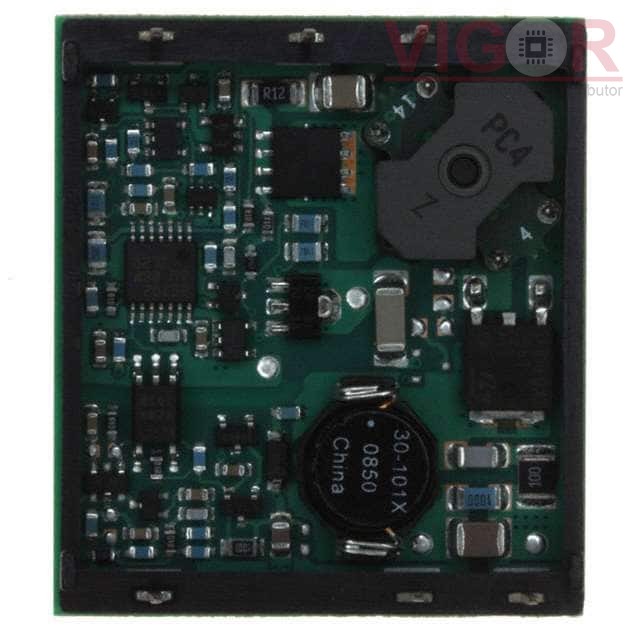

PT4126A

Part No :: PT4126A

Manufacturer: Texas Instruments

VIGOR # :: 5027417

Description: DC DC CONVERTER 1.5V 20W

Catalog: DC DC Converters

DataSheet: PT4126A PDF

Country of origin: -

Date code: -

PT4126A Specifications

Type	Description
Series:	PT4120 (20W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	1.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	67%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4128A Match 64%	Texas Instruments DC DC CONVERTER 2.5V 20W	PT4126A vs PT4128A
PT4127A Match 84%	Texas Instruments DC DC CONVERTER 1.8V 20W	PT4126A vs PT4127A
VYB20W-Q48-S3-H Match 64%	CUI Inc. DC DC CONVERTER 3.3V 20W	PT4126A vs VYB20W-Q48-S3-H
VYB20W-Q48-S3 Match 64%	CUI Inc. DC DC CONVERTER 3.3V 20W	PT4126A vs VYB20W-Q48-S3
PT4121A Match 64%	Texas Instruments DC DC CONVERTER 3.3V 20W	PT4126A vs PT4121A
PYB20-Q48-S3-H Match 64%	CUI Inc. DC DC CONVERTER 3.3V 20W	PT4126A vs PYB20-Q48-S3-H
