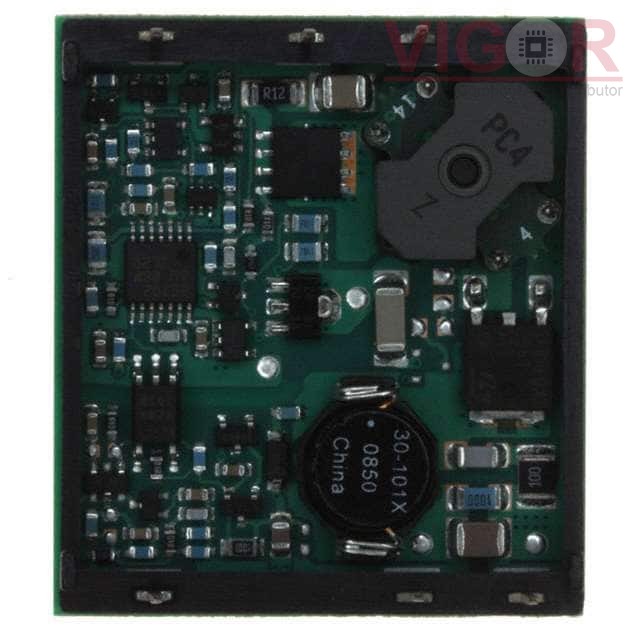

PT4121A

Part No :: PT4121A

Manufacturer: Texas Instruments

VIGOR # :: 5030596

Description: DC DC CONVERTER 3.3V 20W

Catalog: DC DC Converters

DataSheet: PT4121A PDF

Country of origin: -

Date code: -

PT4121A Specifications

Type	Description
Series:	PT4120 (20W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PRD15-Q48-S3-P-D Match 86%	CUI Inc. DC DC CONVERTER 3.3V 15W	PT4121A vs PRD15-Q48-S3-P-D
S36SE3R305NDFG Match 95%	Delta Electronics / Power DC DC CONVERTER 3.3V 17W	PT4121A vs S36SE3R305NDFG
VYB20W-Q48-S3-H Match 100%	CUI Inc. DC DC CONVERTER 3.3V 20W	PT4121A vs VYB20W-Q48-S3-H
VYB20W-Q48-S3 Match 100%	CUI Inc. DC DC CONVERTER 3.3V 20W	PT4121A vs VYB20W-Q48-S3
PYB20-Q48-S3-H Match 100%	CUI Inc. DC DC CONVERTER 3.3V 20W	PT4121A vs PYB20-Q48-S3-H
EC7B-48S33S Match 95%	Cincon DC DC CONVERTER 3.3V 17W	PT4121A vs EC7B-48S33S
