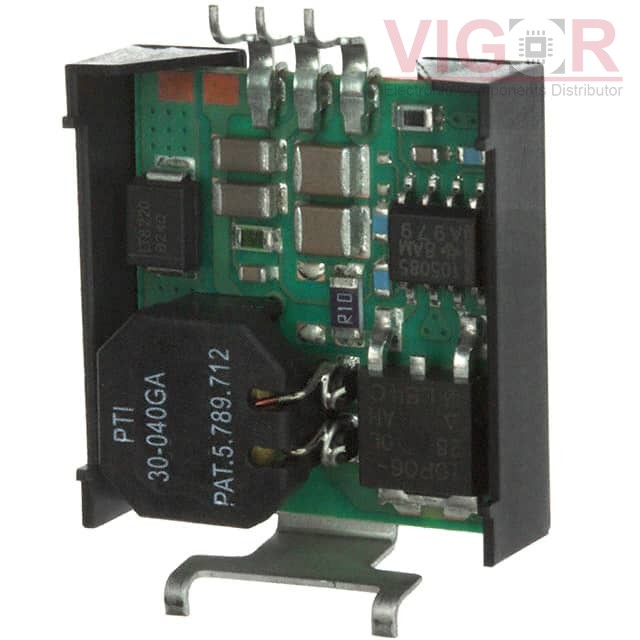

PT78ST136ST

Part No :: PT78ST136ST

Manufacturer: Texas Instruments

VIGOR # :: 5027751

Description: DC DC CONVERTER 3.6V

Catalog: DC DC Converters

DataSheet: PT78ST136ST PDF

Country of origin: -

Date code: -

PT78ST136ST Specifications

Type	Description
Series:	PT78ST100
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	26V
Voltage - Output 1:	3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Surface Mount
Package / Case:	3-SMD Module
Size / Dimension:	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R-78T3.3-1.0/AC-R Match 62%	RECOM Power DC DC CONVERTER 3.3V 3W	PT78ST136ST vs R-78T3.3-1.0/AC-R
R-78T3.3-1.0/AC-TRAY Match 62%	RECOM Power DC DC CONVERTER 3.3V 3W	PT78ST136ST vs R-78T3.3-1.0/AC-TRAY
PT78ST136S Match 100%	Texas Instruments DC DC CONVERTER 3.6V	PT78ST136ST vs PT78ST136S
78ST136SC Match 100%	Texas Instruments DC DC CONVERTER 3.6V	PT78ST136ST vs 78ST136SC
PT78ST133ST Match 88%	Texas Instruments DC DC CONVERTER 3.3V	PT78ST136ST vs PT78ST133ST
78ST133SC Match 88%	Texas Instruments DC DC CONVERTER 3.3V	PT78ST136ST vs 78ST133SC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 931

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PT78ST136ST is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-23P-IW

DC DC CONVERTER 13.8V 100W

VI-2NP-IU-F4

DC DC CONVERTER 13.8V 200W

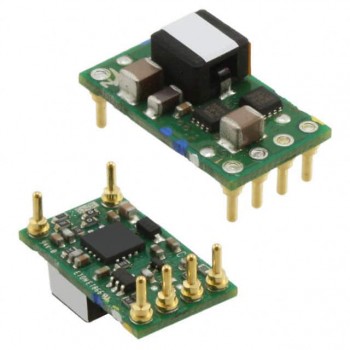

PTH05050YAD
