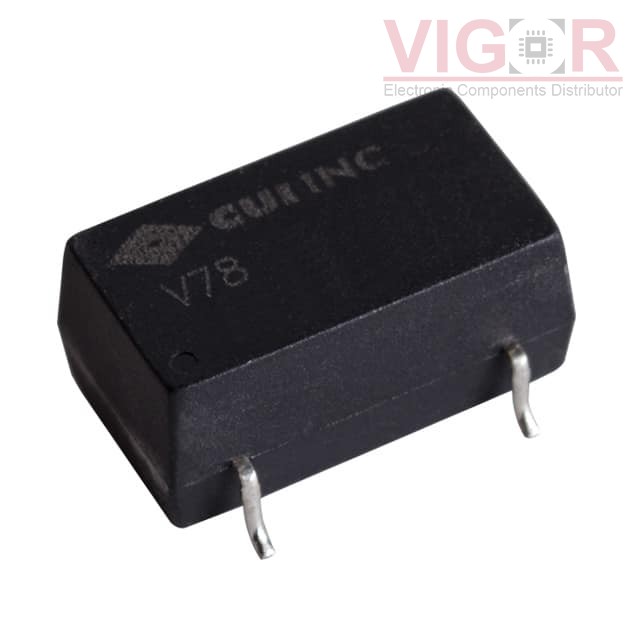

V7802-1000-SMT-TR

Part No :: V7802-1000-SMT-TR

Manufacturer: CUI Inc.

VIGOR # :: 5027893

Description: DC DC CNVRTR 2.5V 1.5-12V 2.5W

Catalog: DC DC Converters

DataSheet: V7802-1000-SMT-TR PDF

Country of origin: -

Date code: -

V7802-1000-SMT-TR Specifications

Type	Description
Series:	V78-1000-SMT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	5V
Voltage - Input (Max):	18V
Voltage - Output 1:	2.5V
Voltage - Output 2:	1.5 ~ 12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	2.5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OTP, SCP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	83%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
V7803-1000-SMT-TR Match 65%	CUI Inc. DC DC CONVERTER 3.3V 3W	V7802-1000-SMT-TR vs V7803-1000-SMT-TR
TSR 1-2418SM Match 54%	TRACO Power DC DC CONVERTER 1.8V 1.8W	V7802-1000-SMT-TR vs TSR 1-2418SM
TSRN 1-2433SM Match 61%	TRACO Power DC DC CONVERTER 3.3V 3.3W	V7802-1000-SMT-TR vs TSRN 1-2433SM
TSR 1-2425SM Match 100%	TRACO Power DC DC CONVERTER 2.5V 2.5W	V7802-1000-SMT-TR vs TSR 1-2425SM
TSR 1-2433SM Match 61%	TRACO Power DC DC CONVERTER 3.3V 3.3W	V7802-1000-SMT-TR vs TSR 1-2433SM
V7802-1000-SMT Match 100%	CUI Inc. DC DC CNVRTR 2.5V 1.5-12V 2.5W	V7802-1000-SMT-TR vs V7802-1000-SMT
