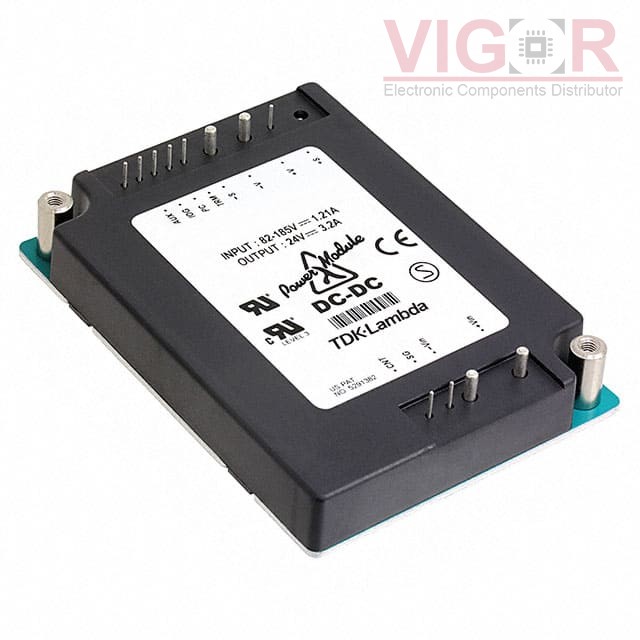

PH75F48-24

Part No :: PH75F48-24

Manufacturer: TDK-Lambda, Inc.

VIGOR # :: 5028417

Description: DC DC CONVERTER 24V 75W

Catalog: DC DC Converters

DataSheet: PH75F48-24 PDF

Country of origin: -

Date code: -

PH75F48-24 Specifications

Type	Description
Series:	PH-F (75W)
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	76V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3.2A
Power (Watts):	75 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-20°C ~ 85°C
Efficiency:	-
Mounting Type:	Through Hole
Package / Case:	Module
Size / Dimension:	3.39" L x 2.44" W x 0.50" H (86.0mm x 62.0mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CQB50W12-72S24 Match 70%	Cincon DC DC CONVERTER 24V 50W	PH75F48-24 vs CQB50W12-72S24
PH100S48-24 Match 80%	TDK-Lambda, Inc. DC DC CONVERTER 24V 100W	PH75F48-24 vs PH100S48-24
PH75S48-24 Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 24V 75W	PH75F48-24 vs PH75S48-24
PH75S48-28 Match 79%	TDK-Lambda, Inc. DC DC CONVERTER 28V 75W	PH75F48-24 vs PH75S48-28
PH75F48-28 Match 79%	TDK-Lambda, Inc. DC DC CONVERTER 28V 75W	PH75F48-24 vs PH75F48-28
PH100S48-28 Match 73%	TDK-Lambda, Inc. DC DC CONVERTER 28V 100W	PH75F48-24 vs PH100S48-28
