PT6947A

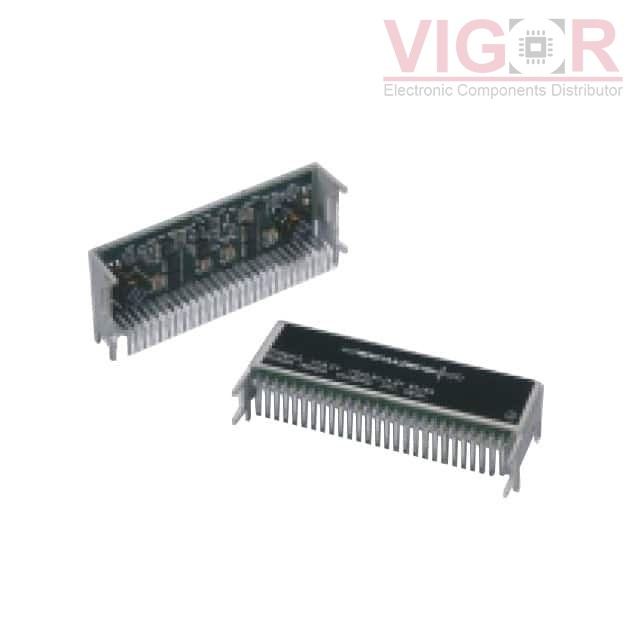

Image is for reference,
please contact us to get the real picture

Part No :: PT6947A

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 2.5V 1.5V

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Nov 07 - Nov 11 2025

DataSheet: PT6947A PDF

Availability: 339 pieces

Unit Price: ~~$0.00000~~

Current price of PT6947A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT6947A Specifications

Type	Description
Series:	Excalibur™ PT6940
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	2
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	2.5V
Voltage - Output 2:	1.5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A, 6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole, Horizontal
Package / Case:	27-SIP Module, Horizontal
Size / Dimension:	3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
