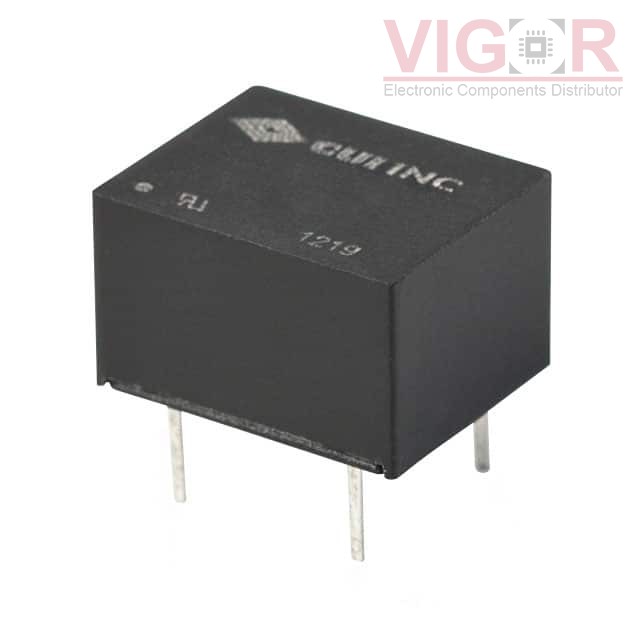

VBSD1-S24-S3.3-DIP

Part No :: VBSD1-S24-S3.3-DIP

Manufacturer: CUI Inc.

VIGOR # :: 5030913

Description: DC DC CONVERTER 3.3V 1W

Catalog: DC DC Converters

DataSheet: VBSD1-S24-S3.3-DIP PDF

Country of origin: -

Date code: -

VBSD1-S24-S3.3-DIP Specifications

Type	Description
Series:	VBSD1-DIP (1W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	300mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	76%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PDS1-S24-S3-D Match 94%	CUI Inc. DC DC CONVERTER 3.3V 1W	VBSD1-S24-S3.3-DIP vs PDS1-S24-S3-D
AYA00F24-L Match 75%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 3.3V 1.3W	VBSD1-S24-S3.3-DIP vs AYA00F24-L
B2403D-1WR3 Match 94%	Mornsun DC DC CONVERTER 3.3V 1W	VBSD1-S24-S3.3-DIP vs B2403D-1WR3
F2403N-1WR3 Match 85%	Mornsun DC DC CONVERTER 3.3V 1W	VBSD1-S24-S3.3-DIP vs F2403N-1WR3
