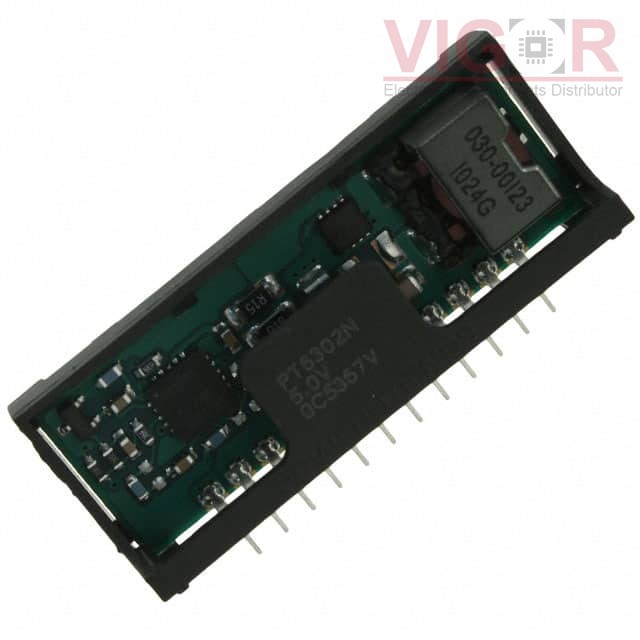

PT6304R

Part No :: PT6304R

Manufacturer: Texas Instruments

VIGOR # :: 5031609

Description: DC DC CONVERTER 12V

Catalog: DC DC Converters

DataSheet: PT6304R PDF

Country of origin: -

Date code: -

PT6304R Specifications

Type	Description
Series:	PT6300
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	16V
Voltage - Input (Max):	38V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	91%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6214P Match 74%	Texas Instruments DC DC CONVERTER 12V	PT6304R vs PT6214P
PT6304N Match 100%	Texas Instruments DC DC CONVERTER 12V	PT6304R vs PT6304N
PT6304S Match 100%	Texas Instruments DC DC CONVERTER 12V	PT6304R vs PT6304S
