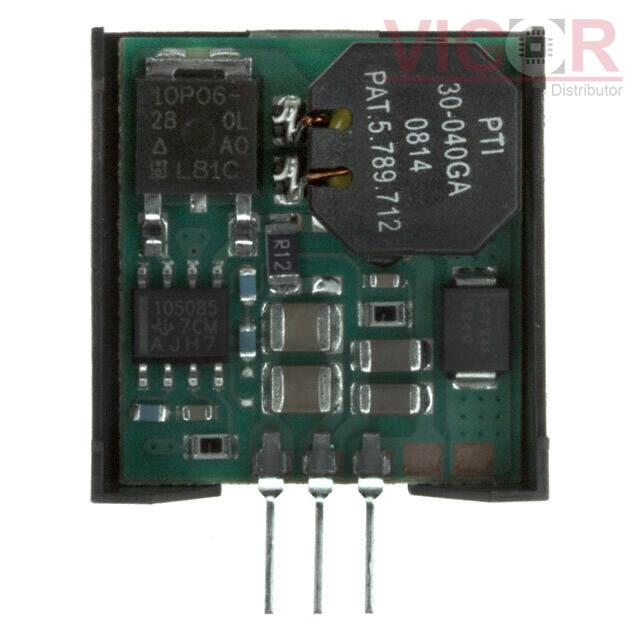

PT78ST136V

Part No :: PT78ST136V

Manufacturer: Texas Instruments

VIGOR # :: 5032237

Description: DC DC CONVERTER 3.6V

Catalog: DC DC Converters

DataSheet: PT78ST136V PDF

Country of origin: -

Date code: -

PT78ST136V Specifications

Type	Description
Series:	PT78ST100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	26V
Voltage - Output 1:	3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TR2024S3V3 Match 70%	XP Power DC DC CONVERTER 3.3V	PT78ST136V vs TR2024S3V3
TSR 1.5-2450E Match 55%	TRACO Power 1.5 AMP POL CONVERTER, INDUSTRIA	PT78ST136V vs TSR 1.5-2450E
TSR 1.5-2433E Match 88%	TRACO Power 1.5 AMP POL CONVERTER, INDUSTRIA	PT78ST136V vs TSR 1.5-2433E
78SR105TC Match 55%	VIGOR SWITCHING REGULATOR, VOLT-MODE	PT78ST136V vs 78SR105TC
78ST136VC Match 100%	Texas Instruments DC DC CONVERTER 3.6V	PT78ST136V vs 78ST136VC
PT78ST133V Match 88%	Texas Instruments DC DC CONVERTER 3.3V	PT78ST136V vs PT78ST133V
